Technical details

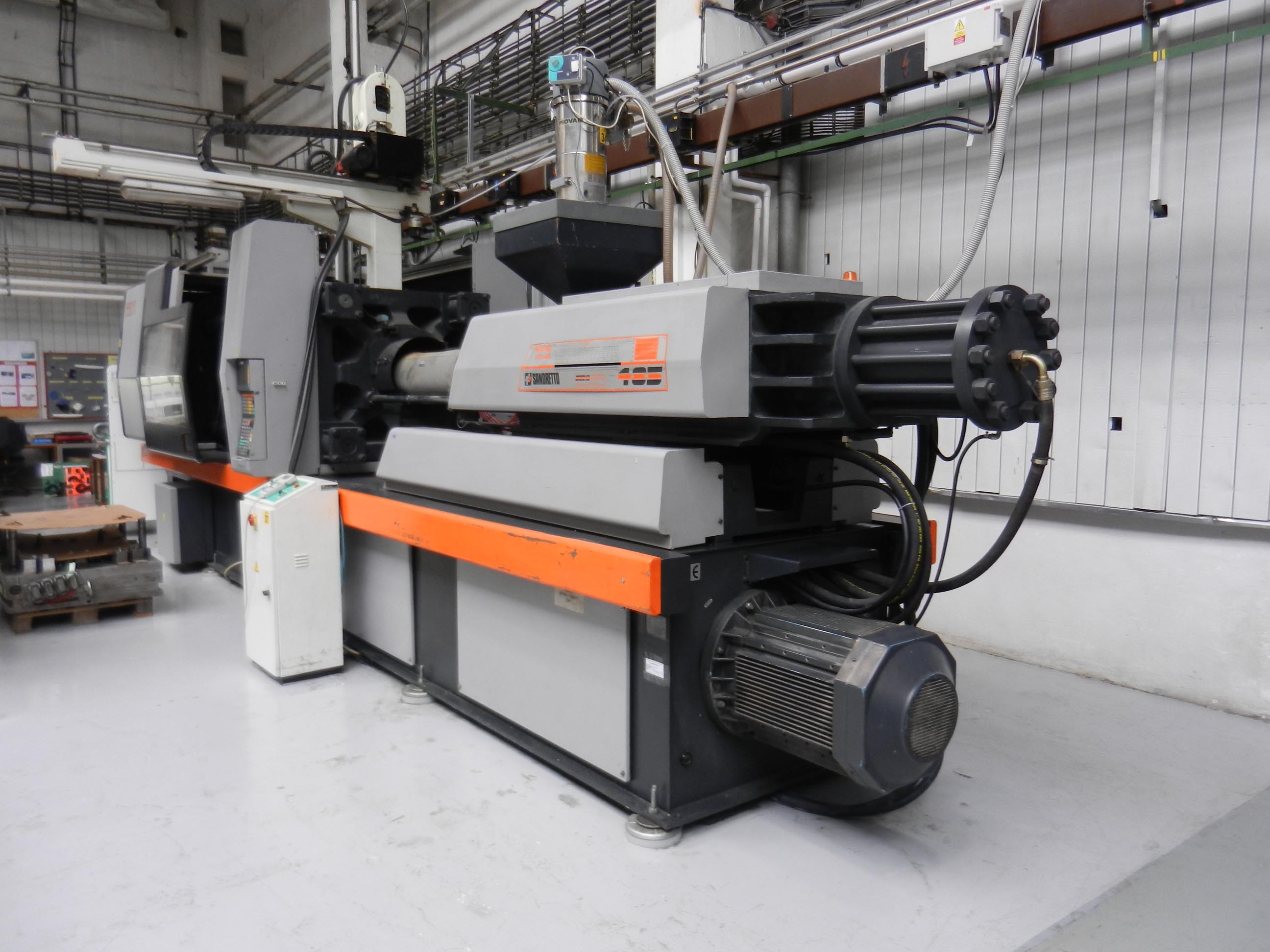

Type of machine: Injection molding machine
Manufacturer, Model: Sandretto OTTO 485
YOM 1999
Force: 4850 kN
Screw: 80 mm
Other:
  • Injection molding machine Sandretto 485 T
  • Model: Serie OTTO 485
  • Year of construction: 1999
  • Clamping Force: 4850 Kn
  • Screw diameter: 80 mm
  • Ejector stroke: 305 mm
  • Centering on the plate fix part: 160 mm
  • Centering on the plate moving part: 160 mm
  • Injection Volume: 2060 cm3
  • Min dimension of mould: 250 mm
  • Max dimension of mould: 850
  • Max opening of mould: 830
  • Distance between the columns: 740x740
  • Dimension of plate: 1120x1120
  • Weight of Mould max: 3000 kg
  • Volume oil. tank: 750 l
  • Cores: Yes, 3
  • Robot or Manipulator; Robot
  • Designation of robot or manipulator: Piovan+Star T1200E
  • Ejector: M 20
  • Max. injection pressure: 1 540
