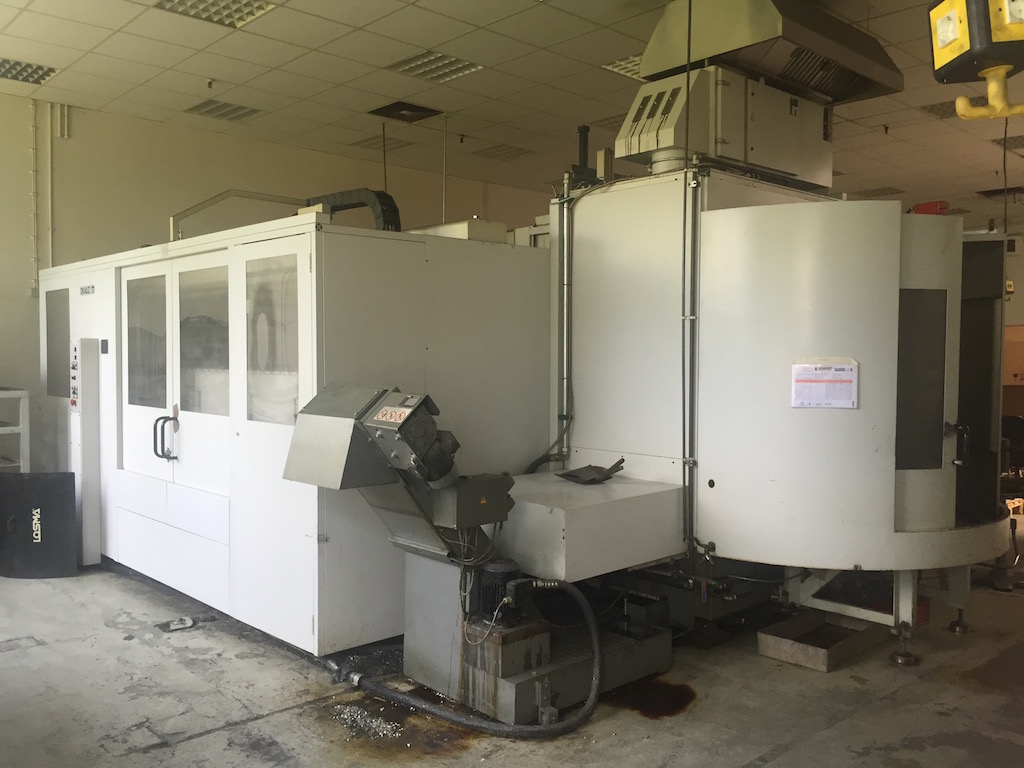

| Type of machine: |
Horizontal Machining Center |
| # of CNC axis |
4 |

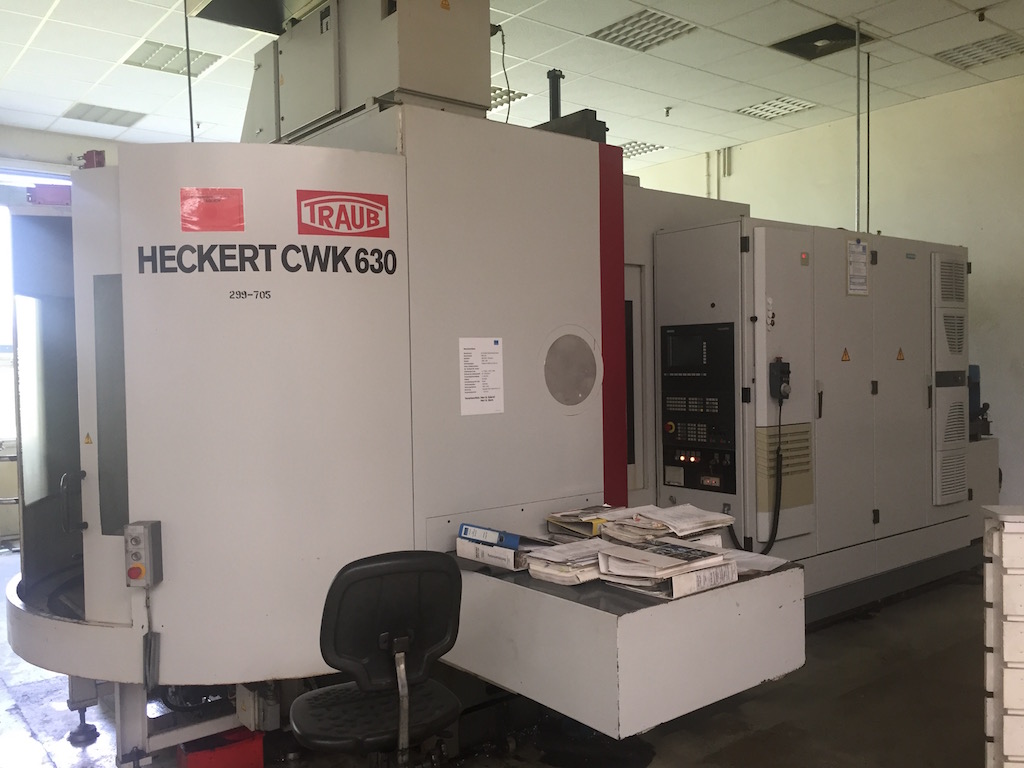

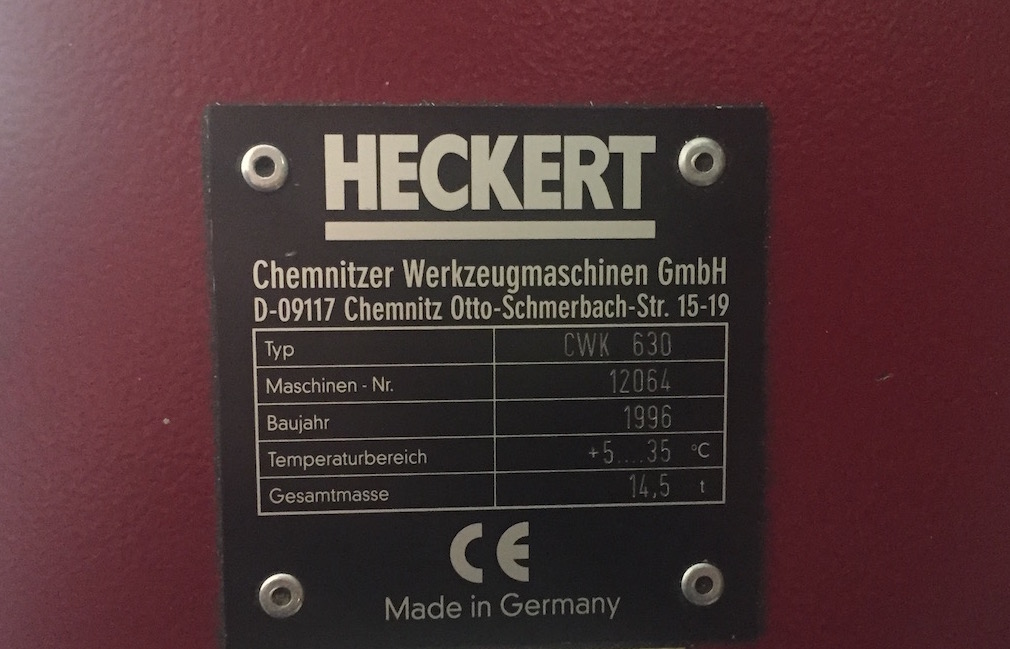

| Manufacturer, Model: |
Heckert Traub CWK 630 |
| Made in: |
Germany |
| Y.O.M: |
1996 |

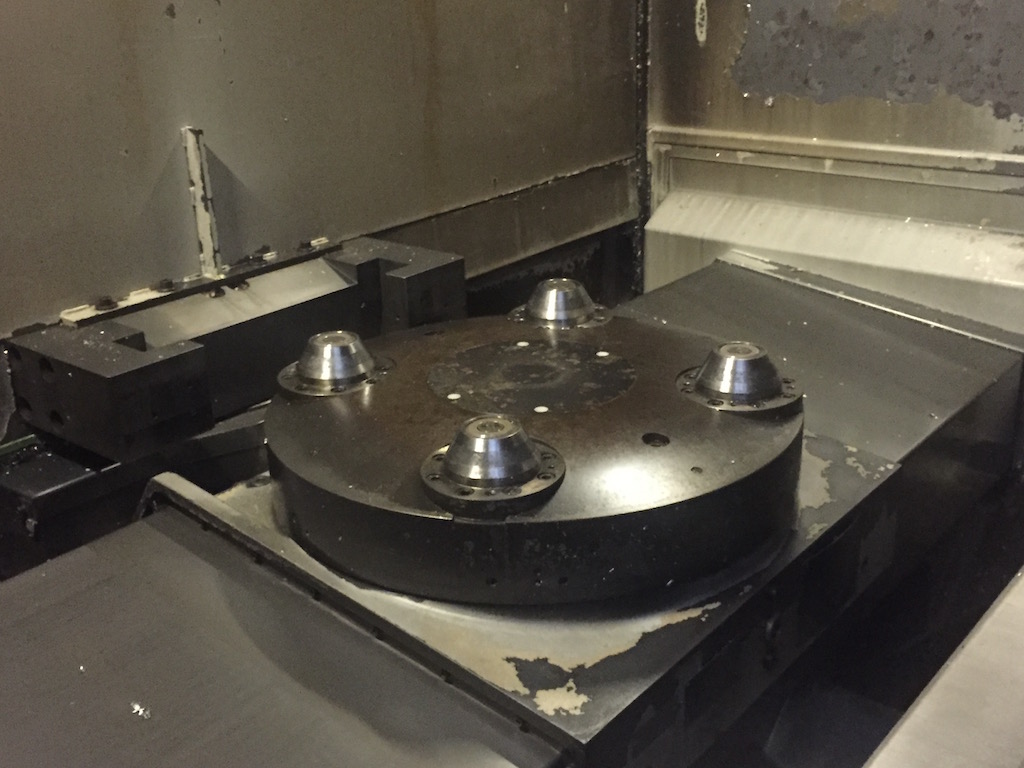

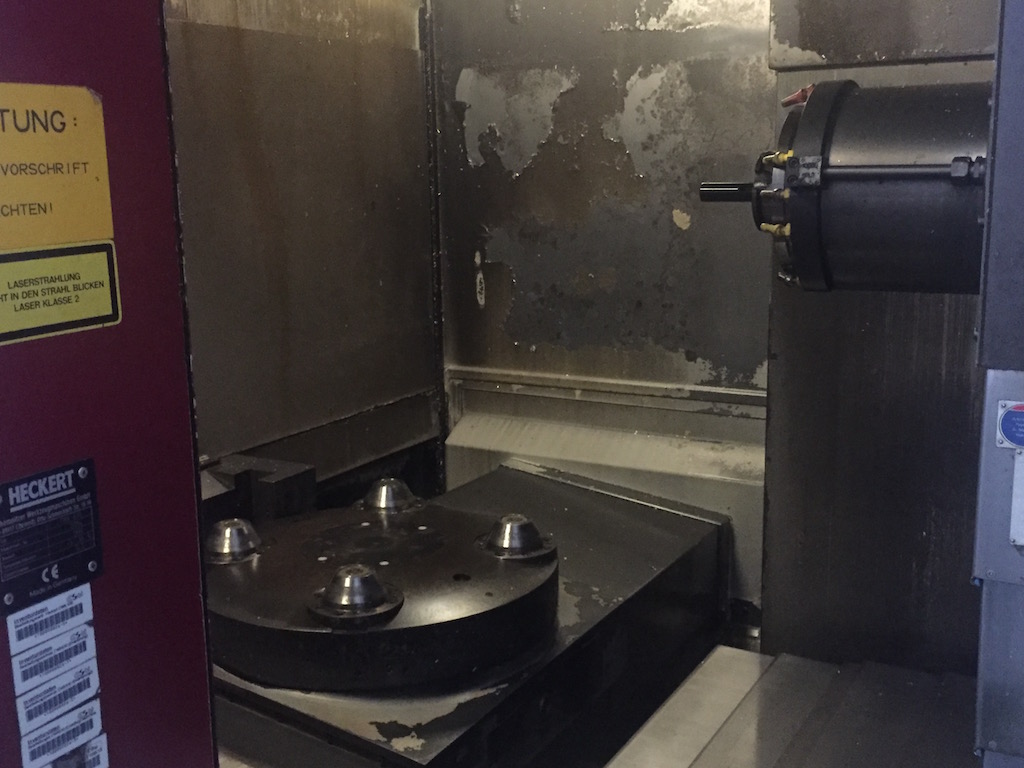

| Pallet size / max. load: |
2 pcs, 630 x 630 mm, 1000 kg |
| X-Y-Z : |
1000 x 750 x 836 mm |

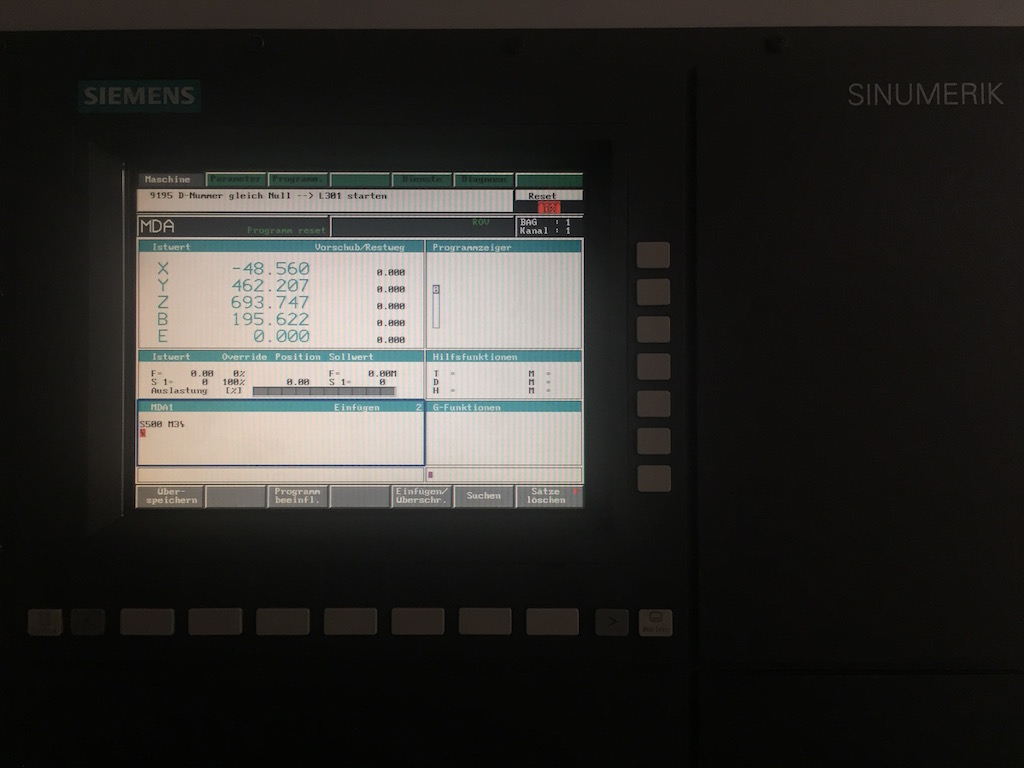

| Control: |

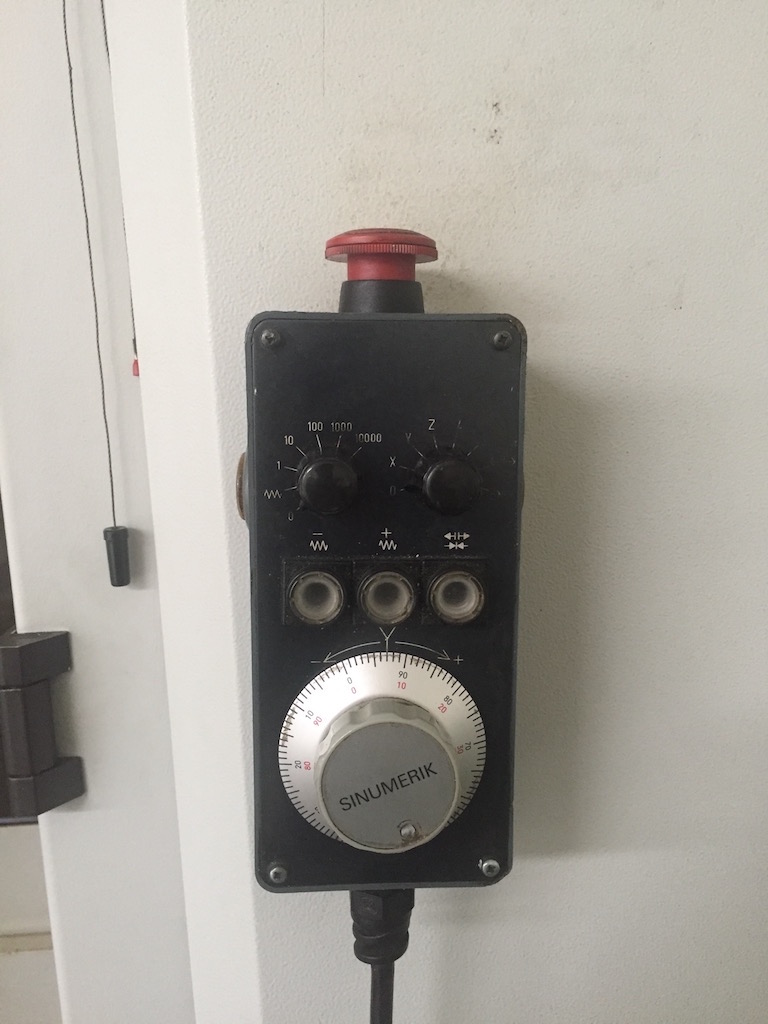

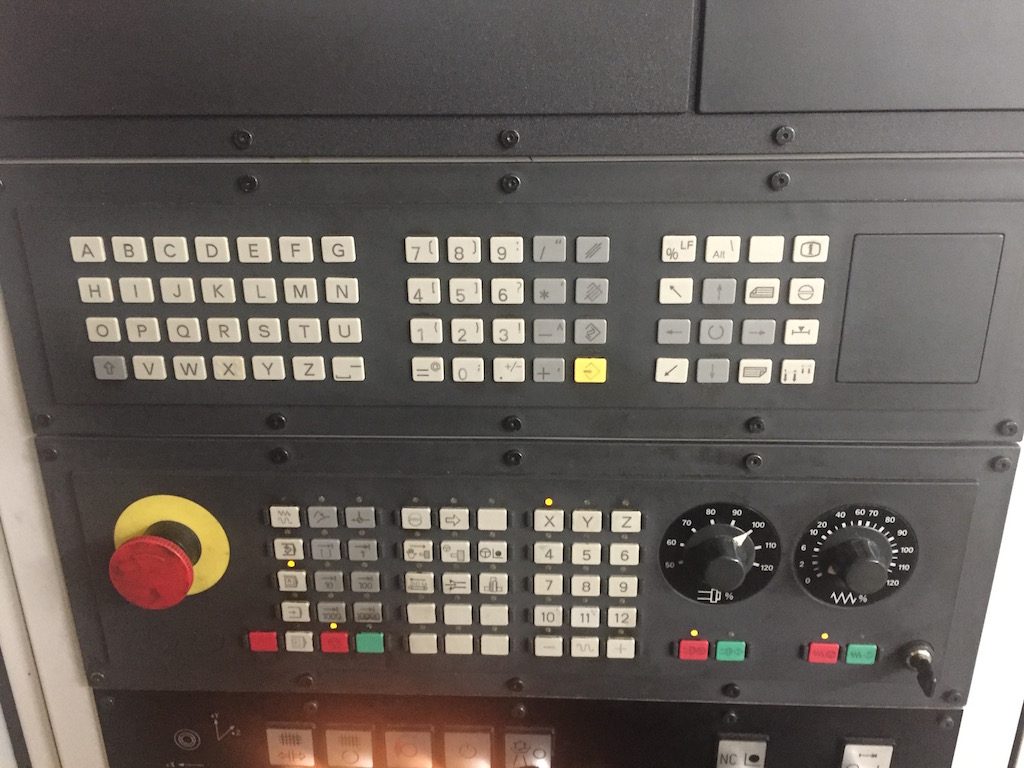

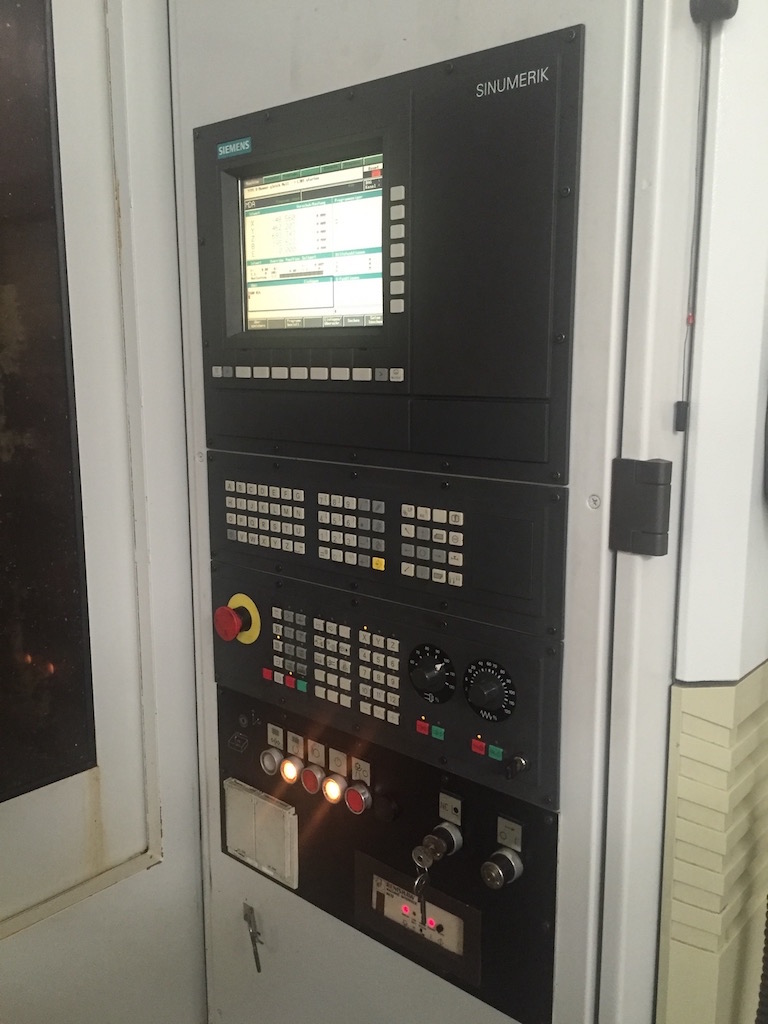

Siemens Sinumerik 840 C |

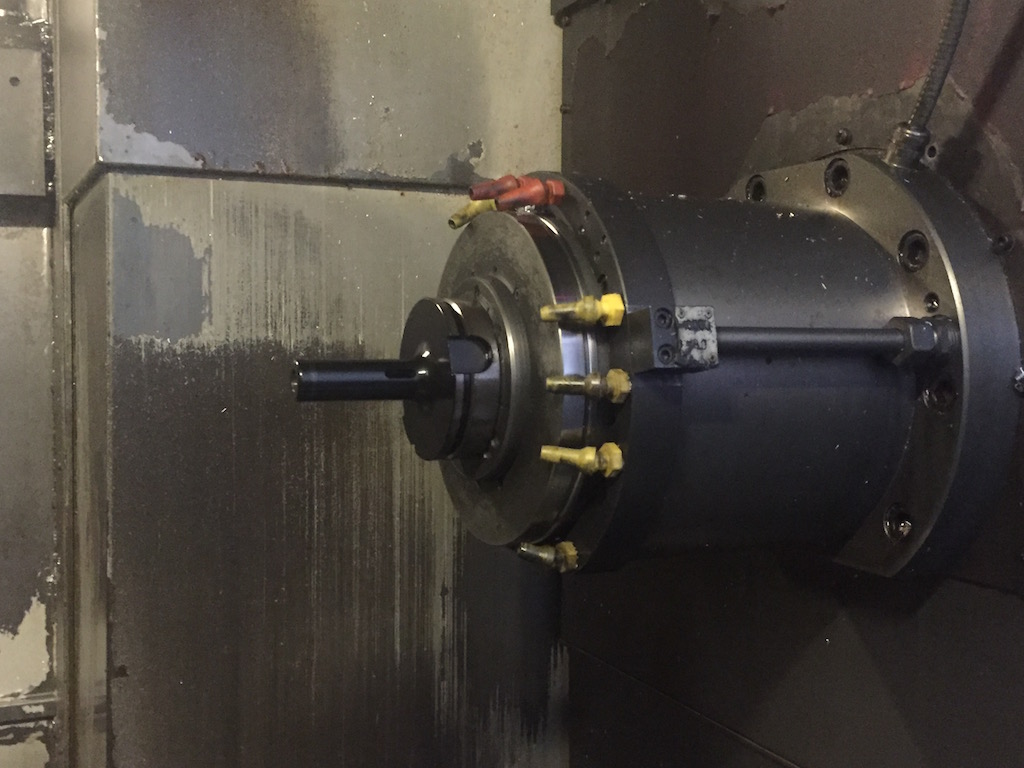

| Spindle: |
10.000 rpm |
| ATC (tool changer) |
126 |
| Equipment: |

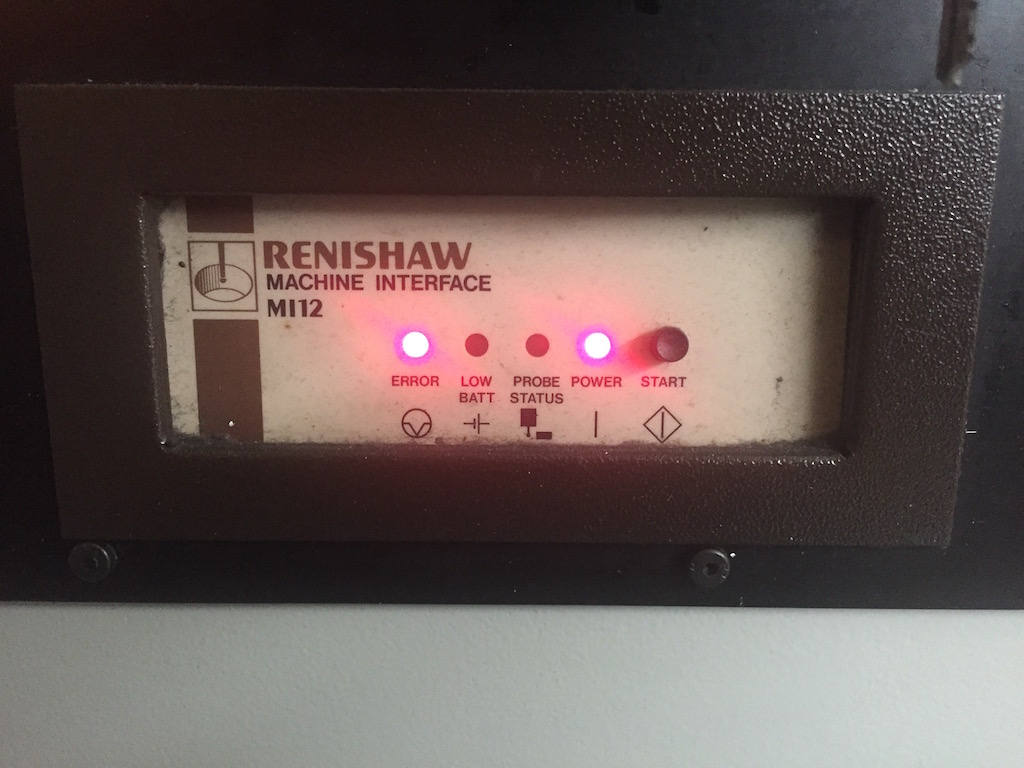

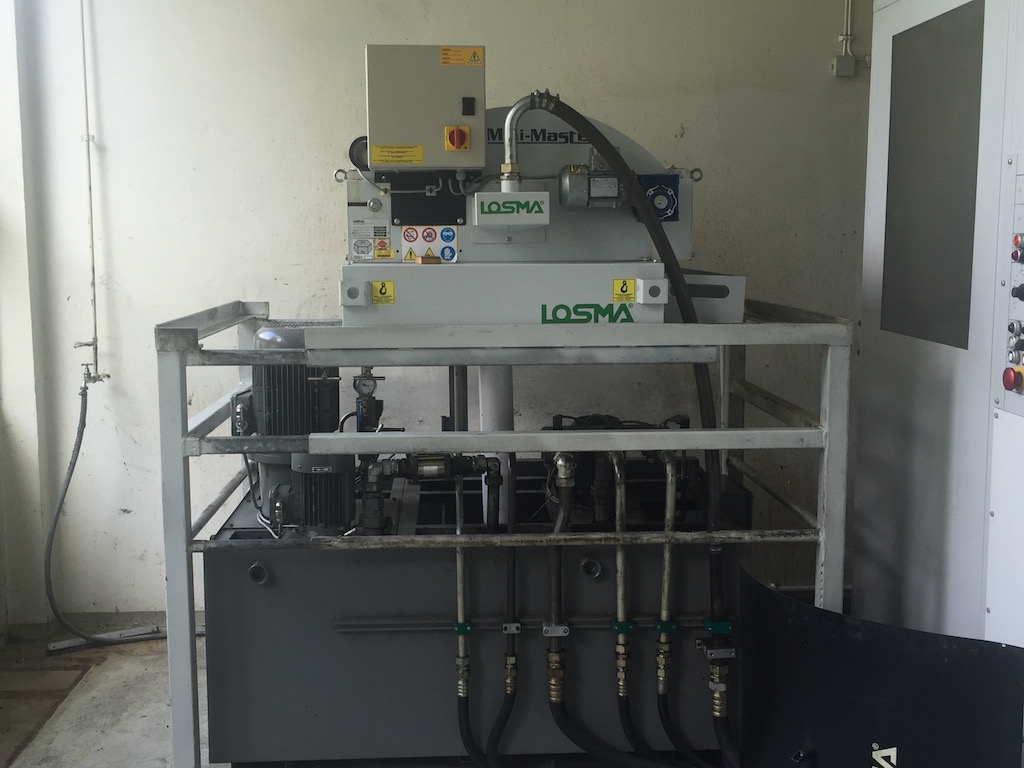

Coolant system, Internal coolant supply, pallet changer 2 pos., pallets 4x, chip conveyor, high pressure cooling 50 bar, oil mist extraction, paper band filter, Renishaw CNC |
| Other technical details: |
- Tool changer:
- Number of tool pockets 126 pos.
- Max. Tool diameter 125 mm
- max. Tool through. with free toolbox. 250 mm
- max. Tool length 800 mm
- max. Tool 35 kg
- changing time chip - chip about 7.5 sec
- rapid traverse 32 m / min
- total power requirement 60 kW
- weight of the machine ca. 17,5 t
- dimensions of the machine ca. 7,0 x 5,5 x 3,7 m
|
