| Type of machine: |

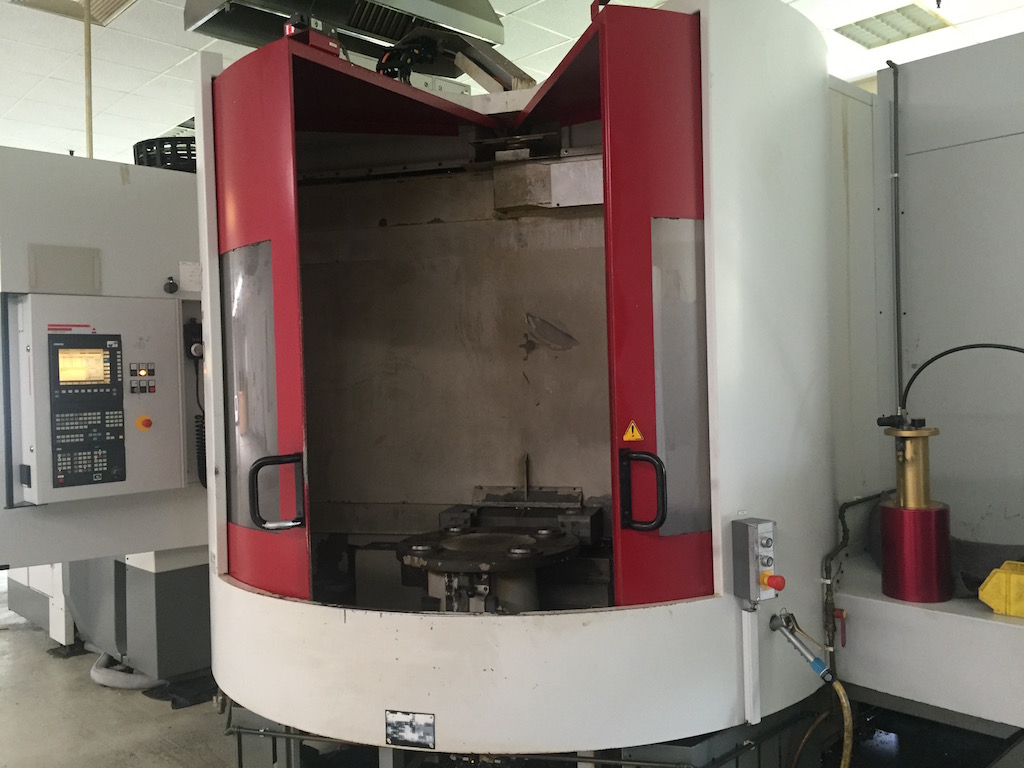

Horizontal Machining Center |
| # of CNC axis |
4 |

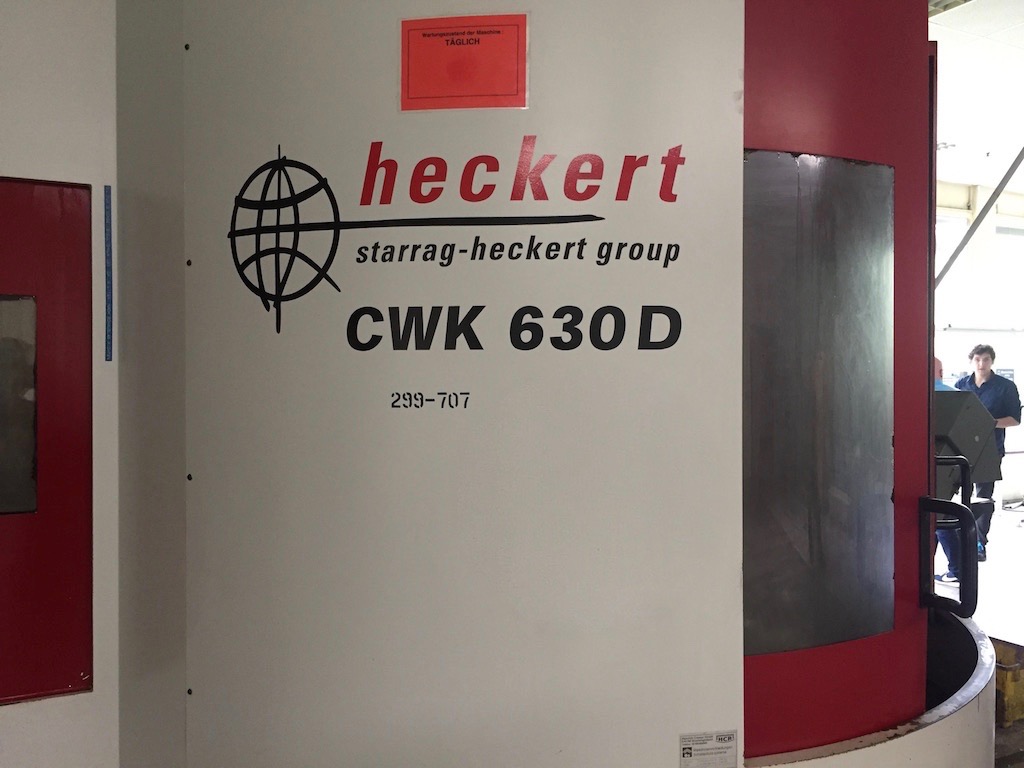

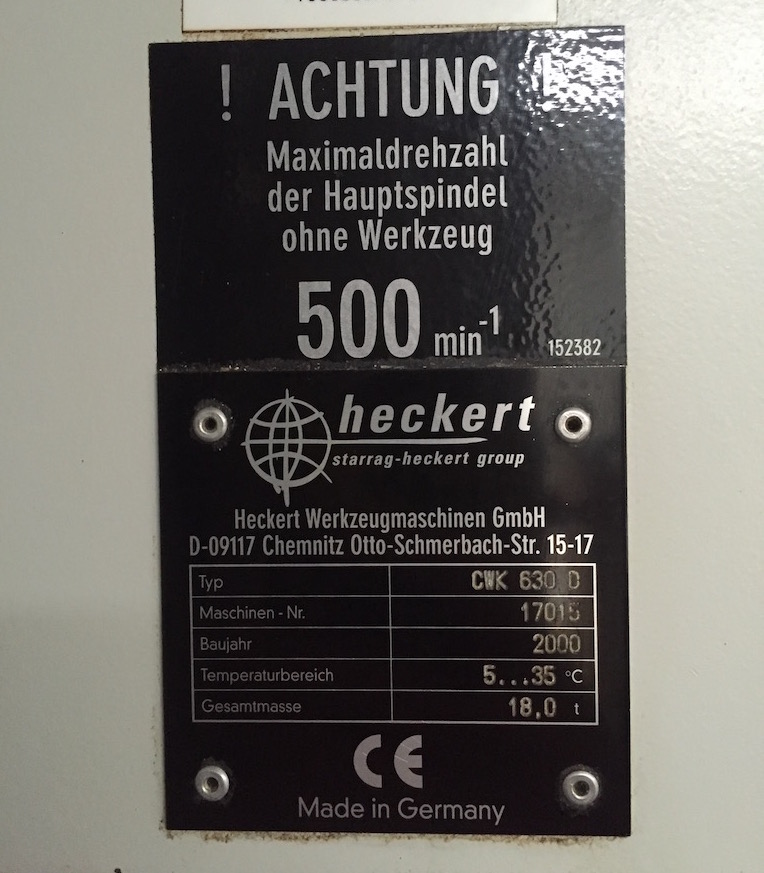

| Manufacturer, Model: |

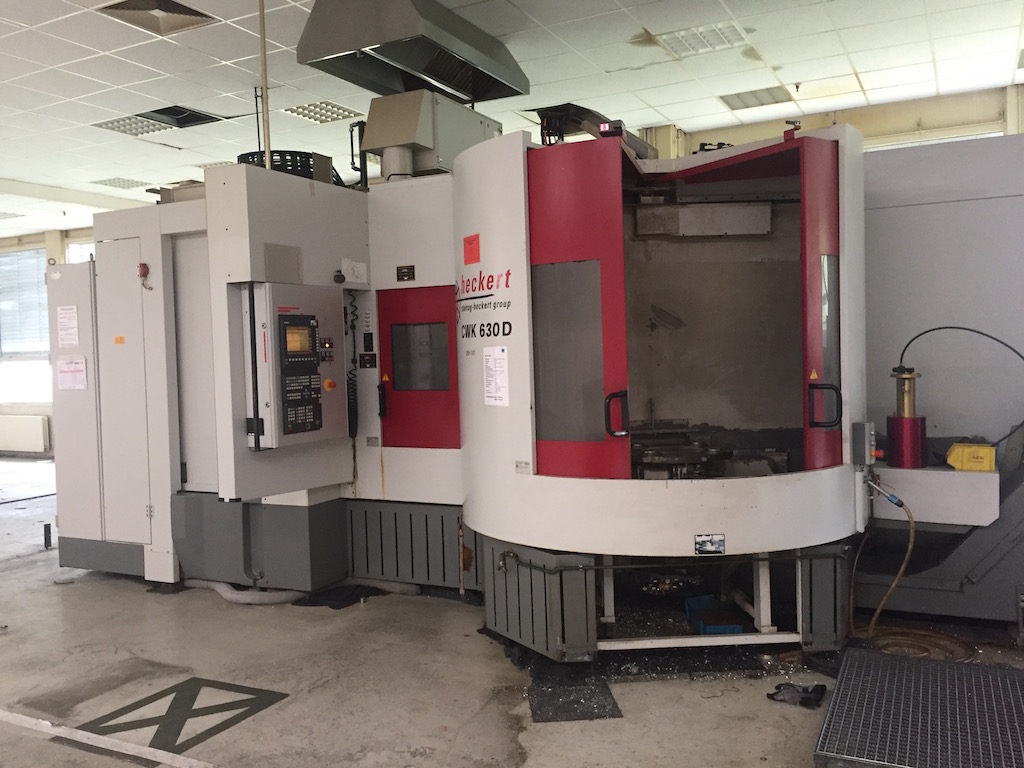

Heckert Traub CWK 630 D |
| Made in: |
Germany |
| Y.O.M: |
2000 |
| Pallet size / max. load: |
2 pcs, 800 x 630 mm, 1000 kg |
| X-Y-Z : |
1050 x 1000 x 1160 mm |

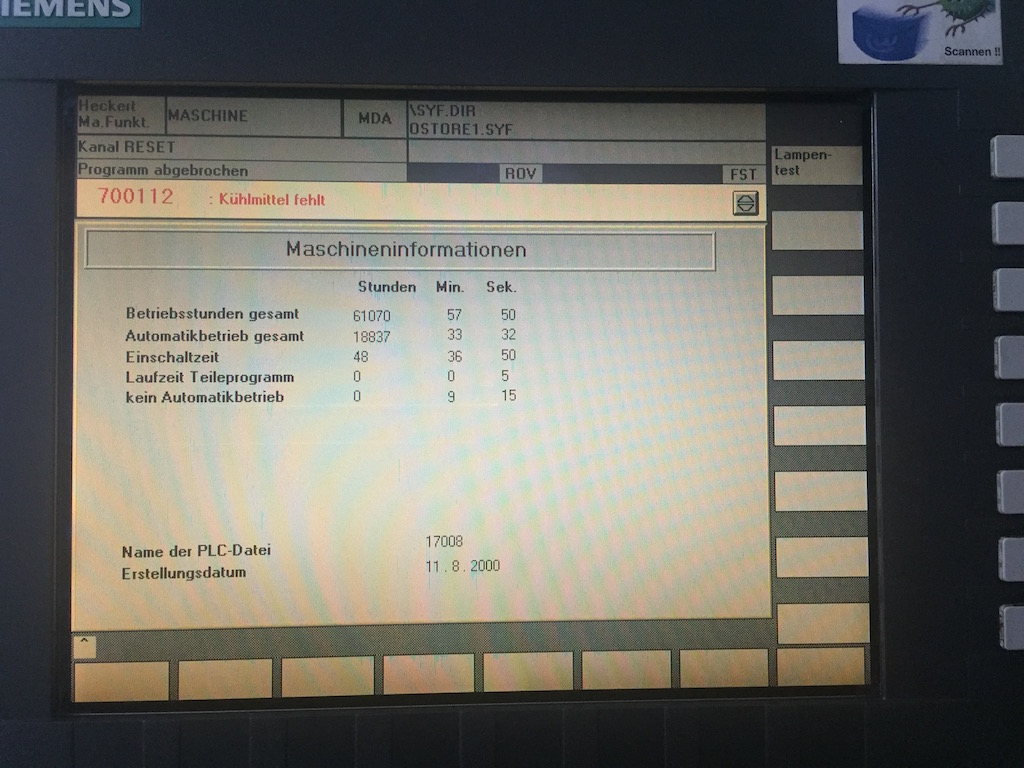

| Control: |

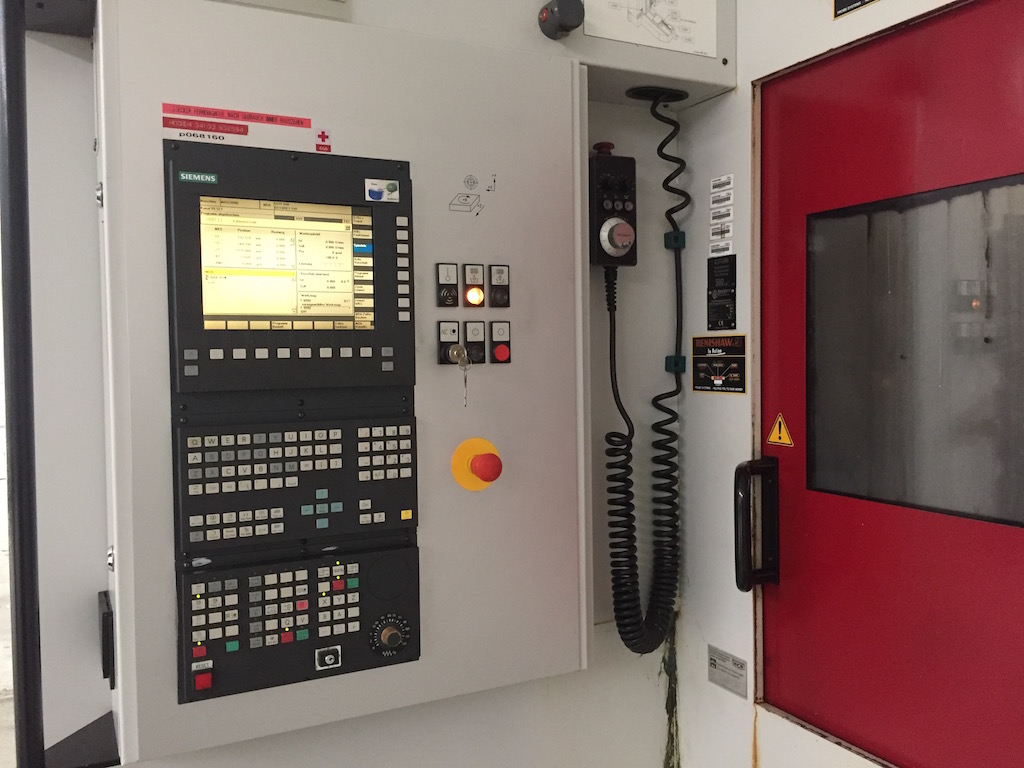

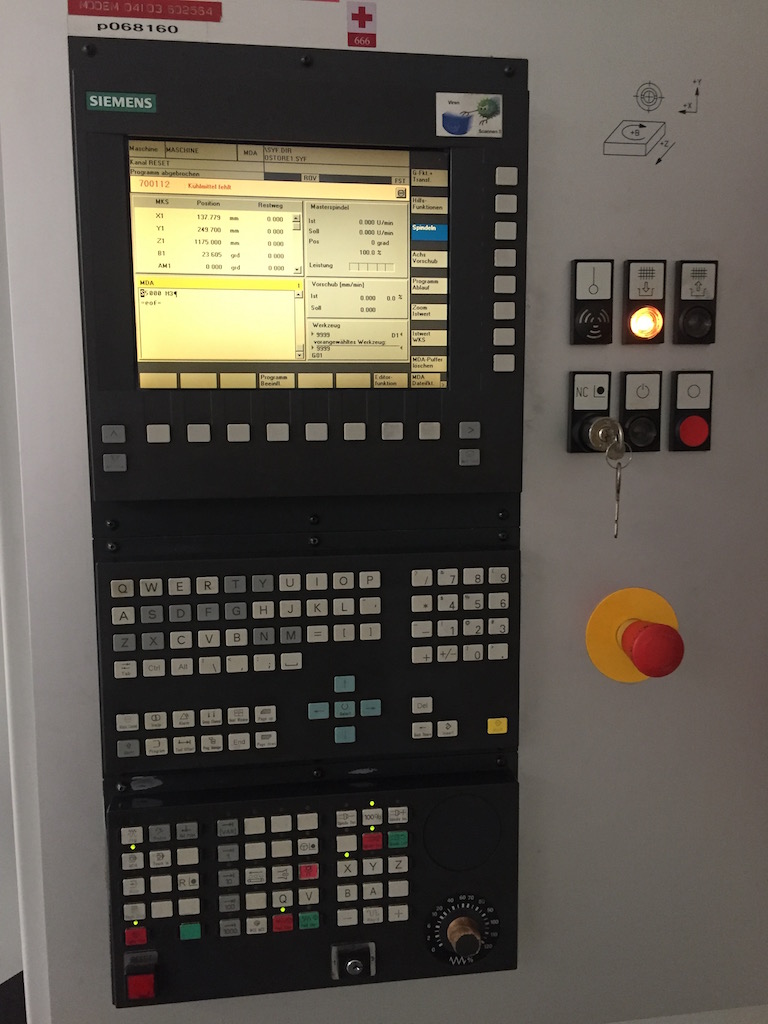

Siemens Sinumerik 840 D |

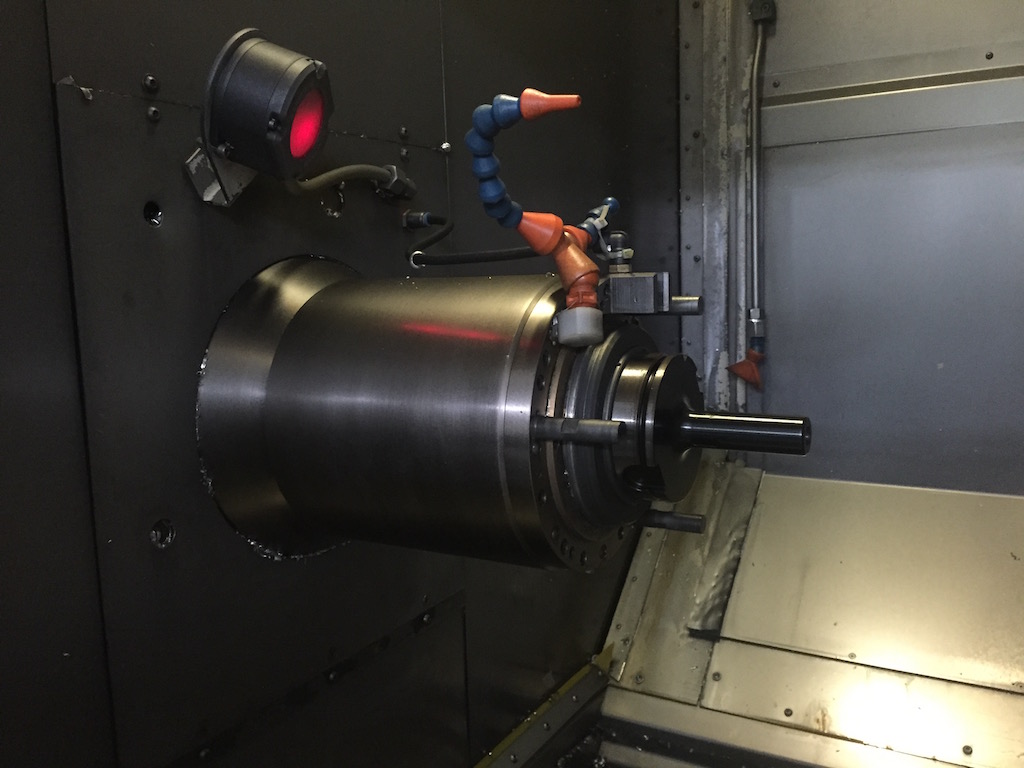

| Spindle: |
15.000 rpm |

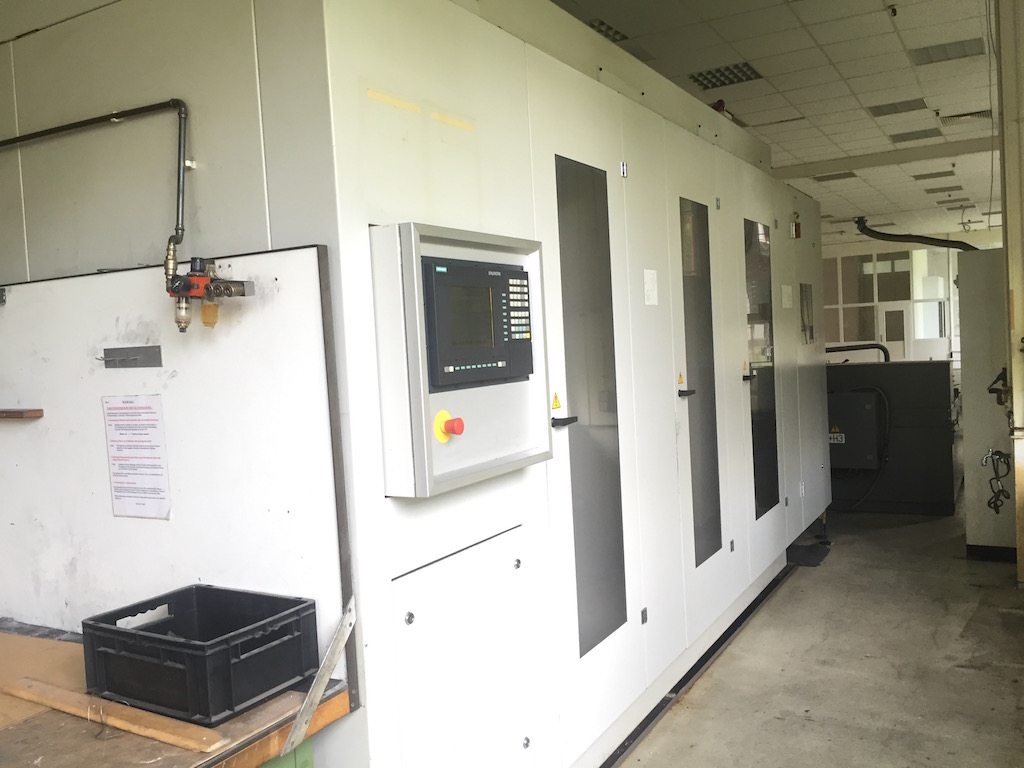

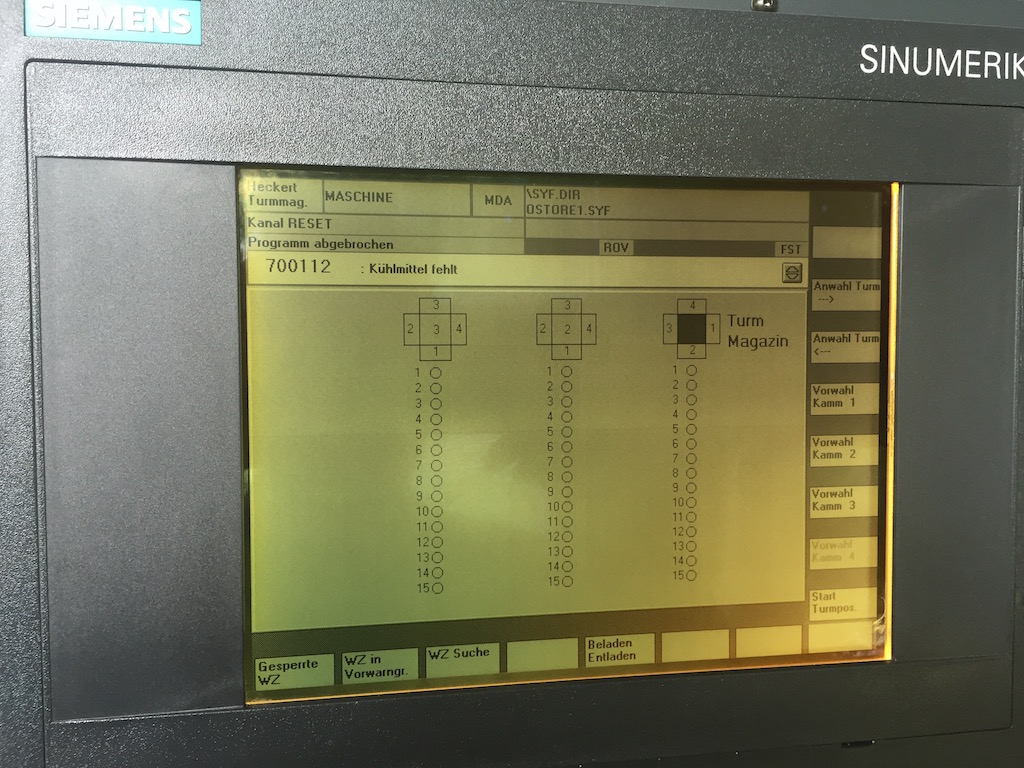

| ATC (tool changer) |
165 |
| Equipment: |

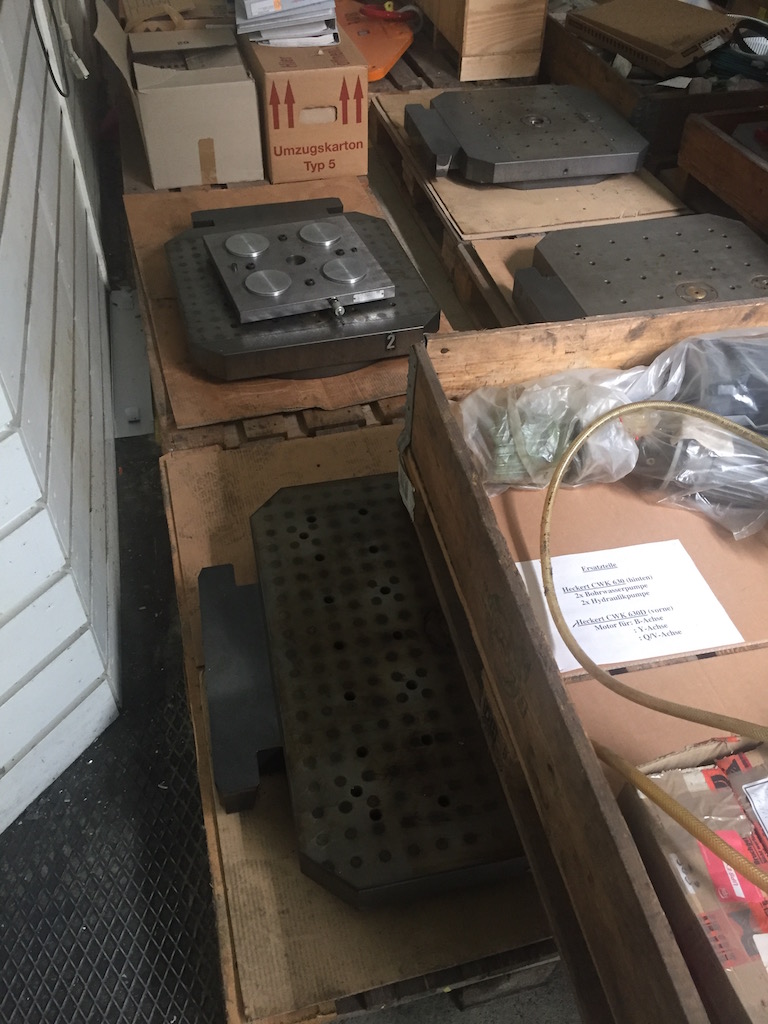

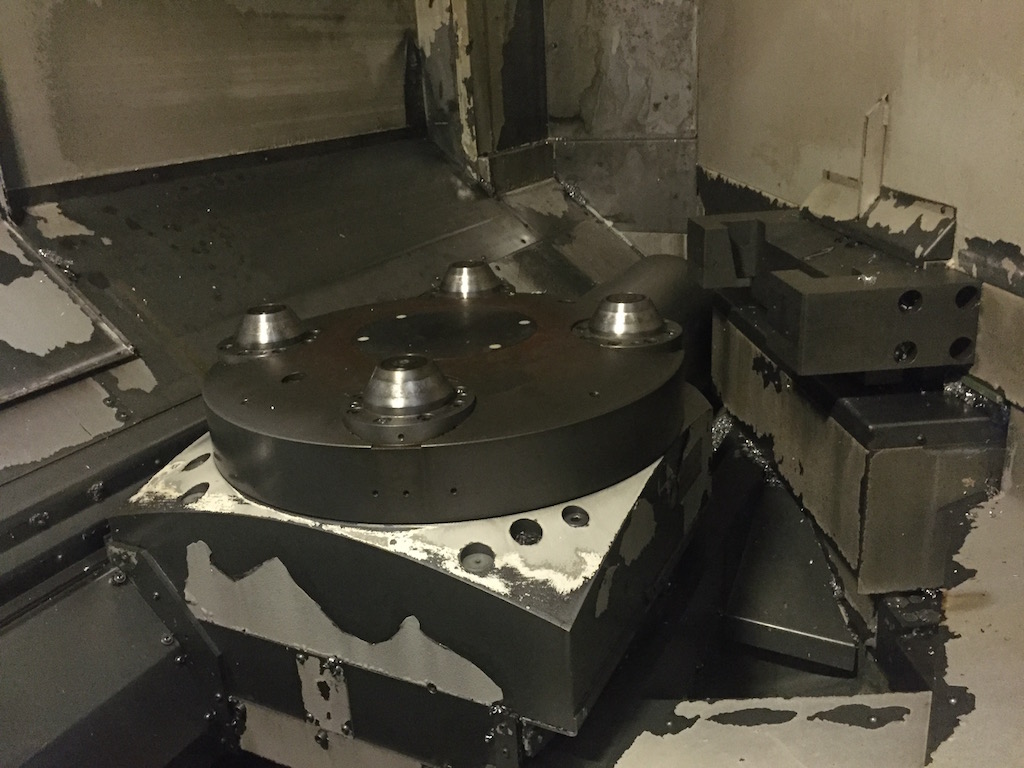

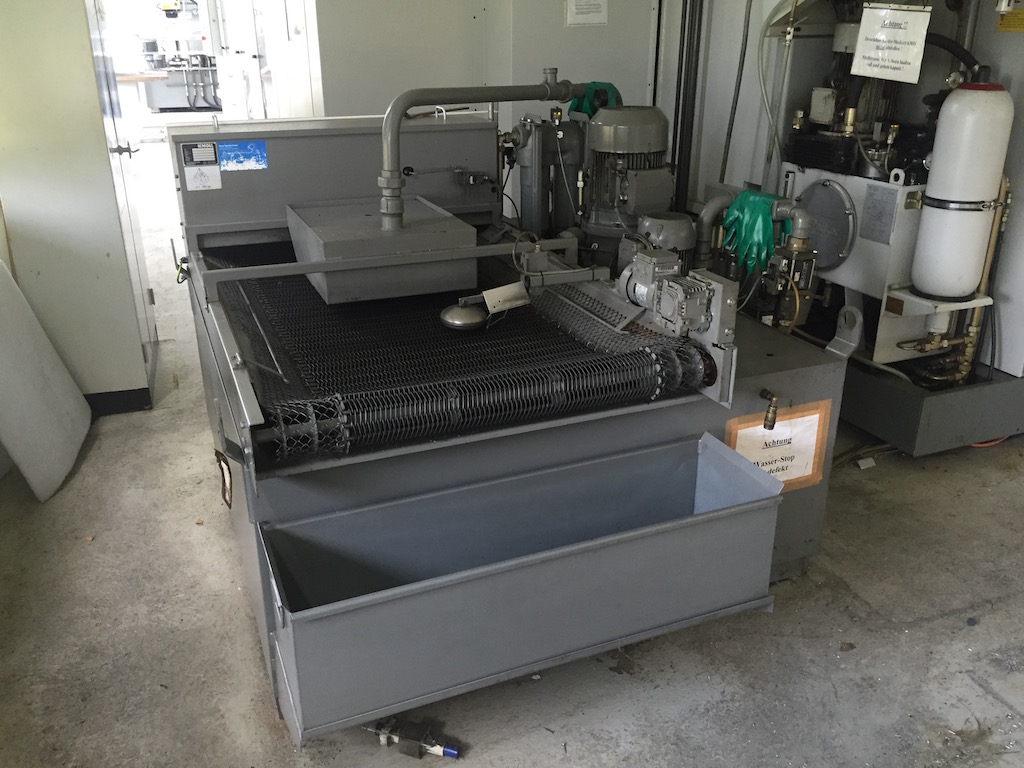

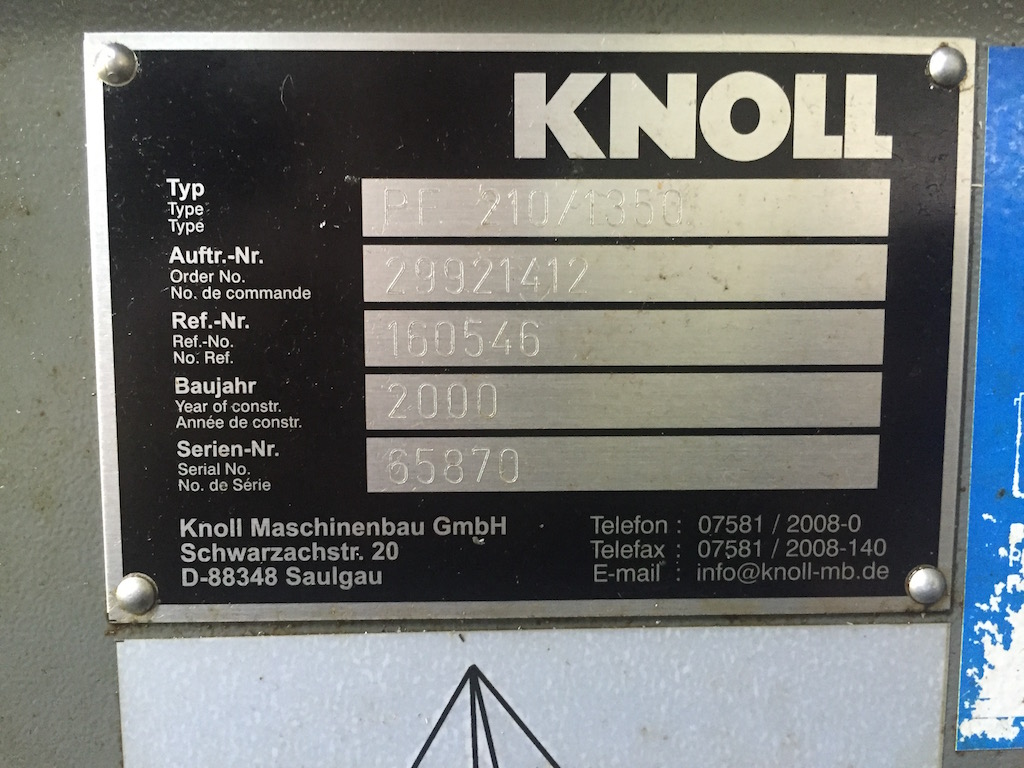

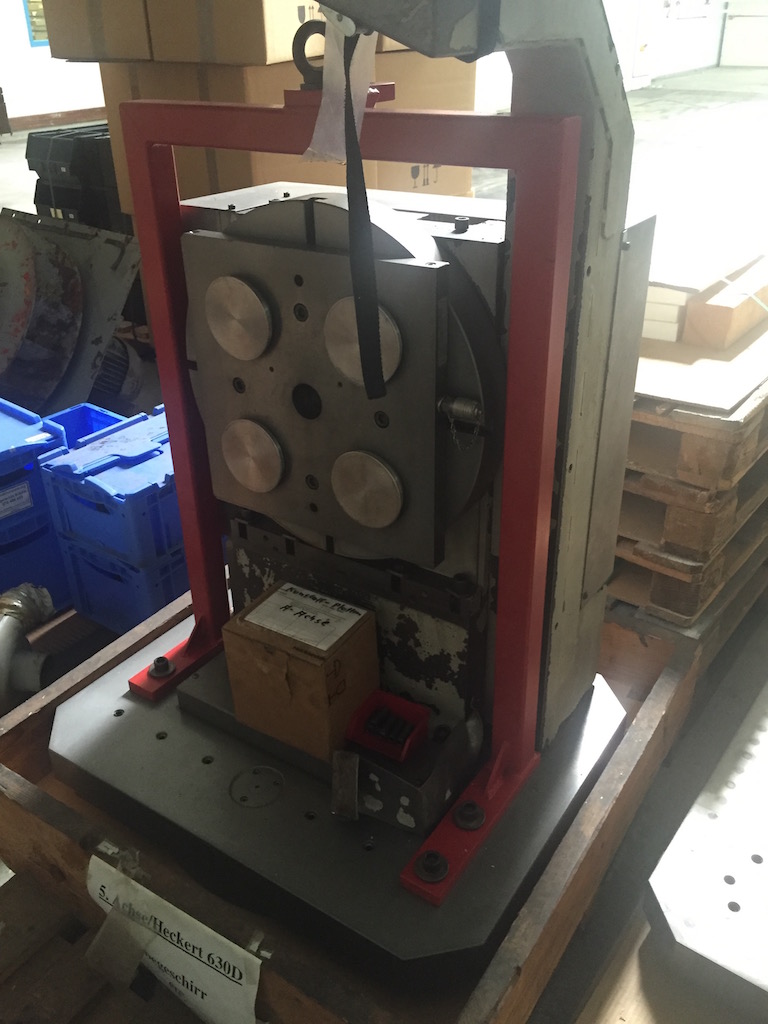

Coolant system, Internal coolant supply, pallet changer 2 pos., pallets 4x, chip conveyor, high pressure cooling 50 bar, oil mist extraction, paper band filter, Renishaw CNC, NC swivel rotary table Rückle PKTW 2 |
| Other technical details: |
- Tool changer
- Max. Tool diameter 125 mm
- max. Tool through. with free toolbox. 250 mm
- max. Tool length 800 mm
- max. Tool 35 kg
- changing time chip - chip about 7.5 sec
- rapid traverse 40 m / min
- total power requirement 60 kW
- weight of the machine ca. 19,5 t
- dimensions of the machine ca. 8,0 x 5,0 x 3,7 m
|
