Technical details

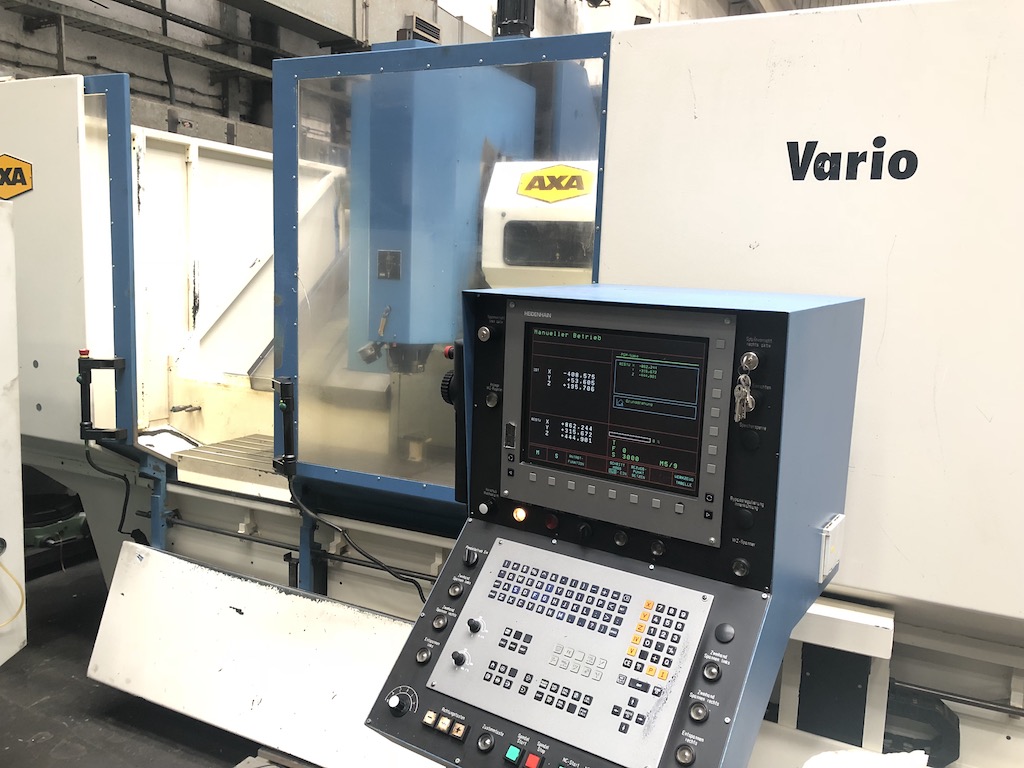

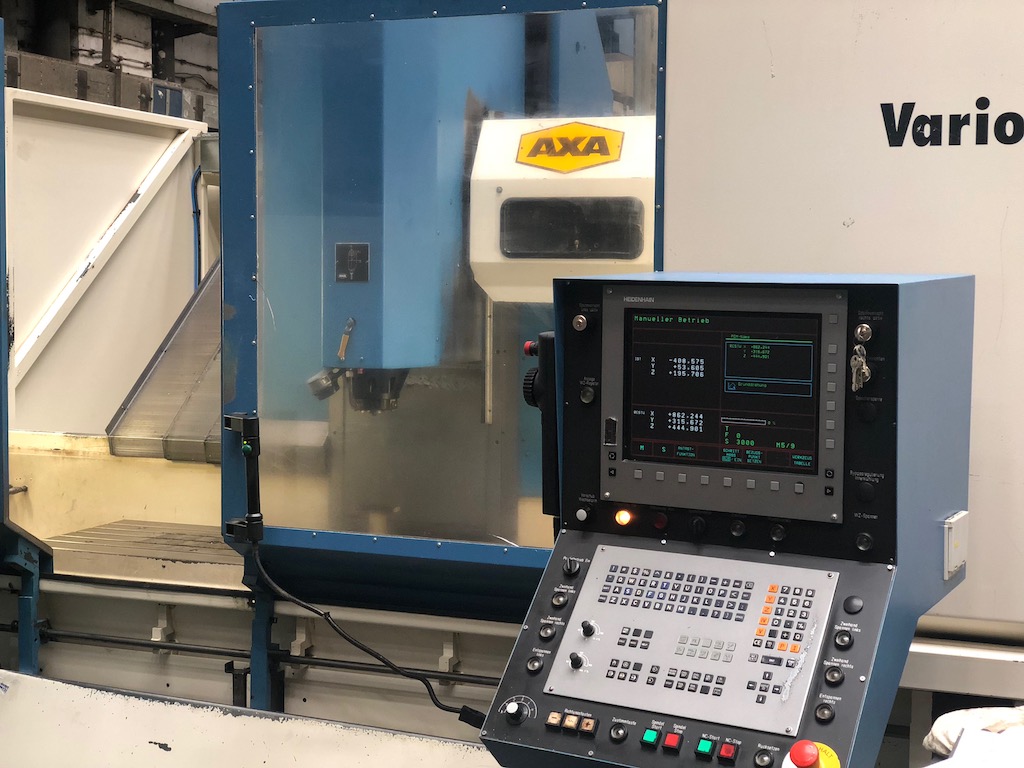

Machine type: Vertical machining center
#  CNC axis 3
Manufacturer, Model: Axa Vario
Origin:  Germany
YOM: 2001

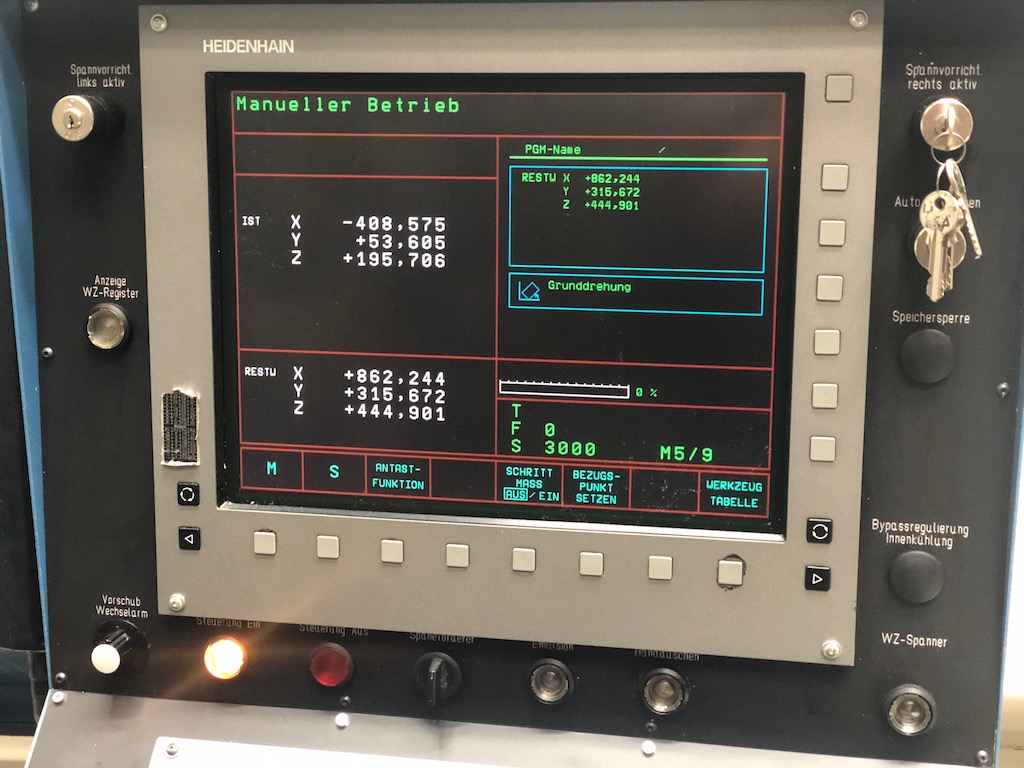

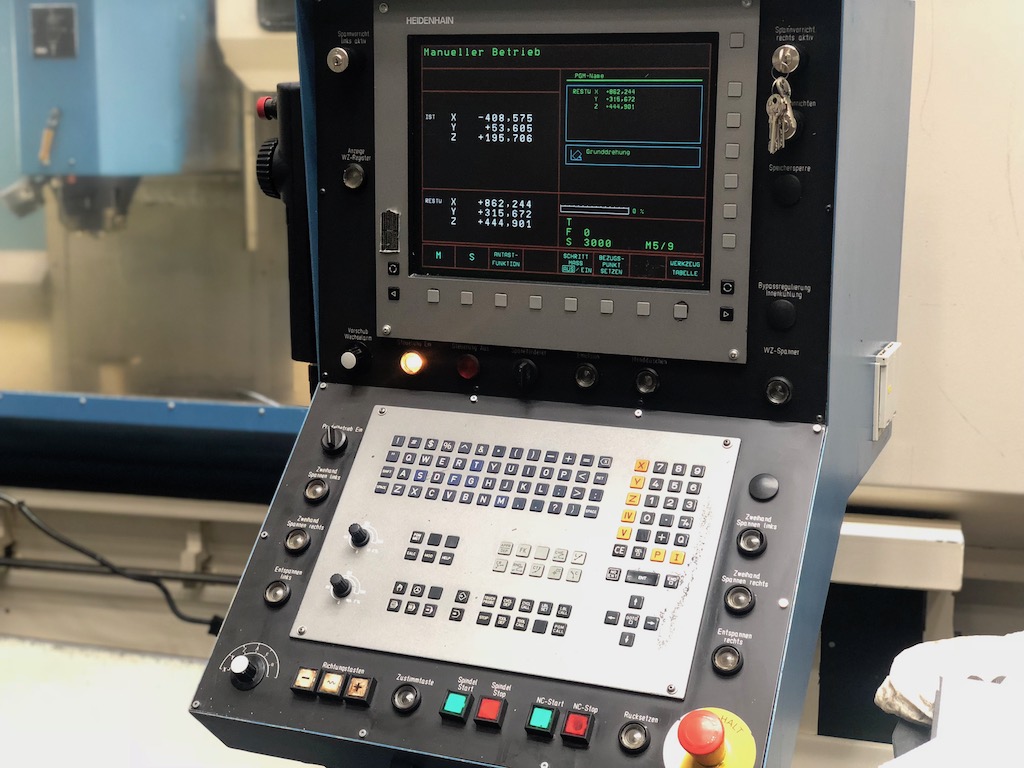

Control: Heidenhain TNC 410

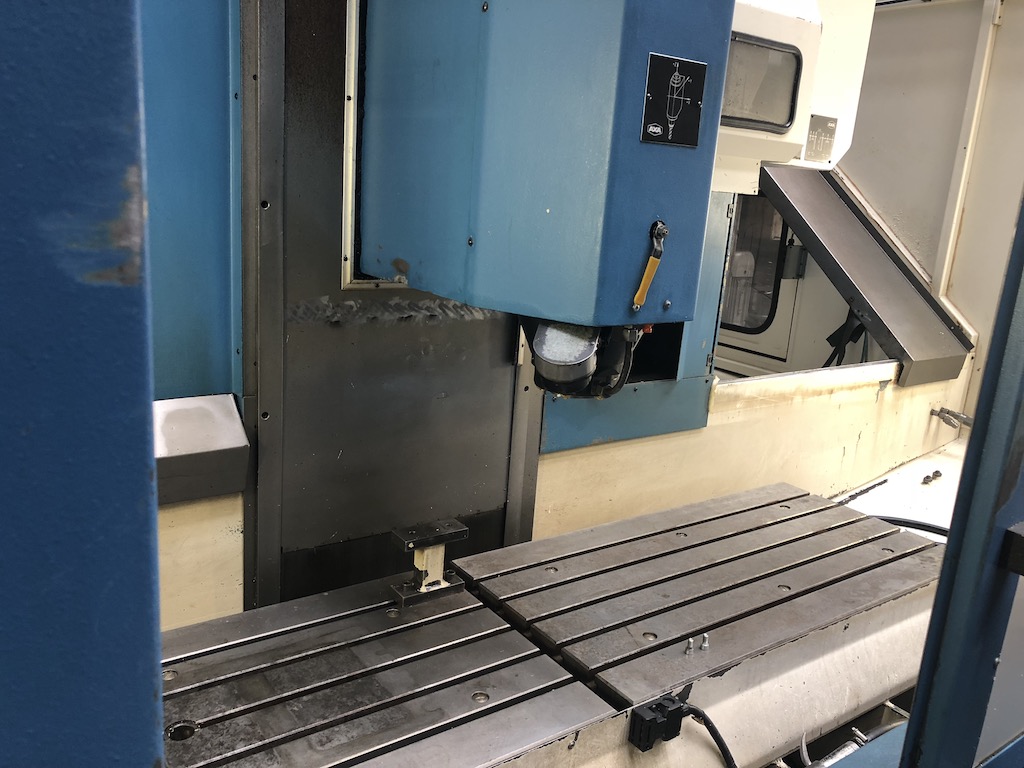

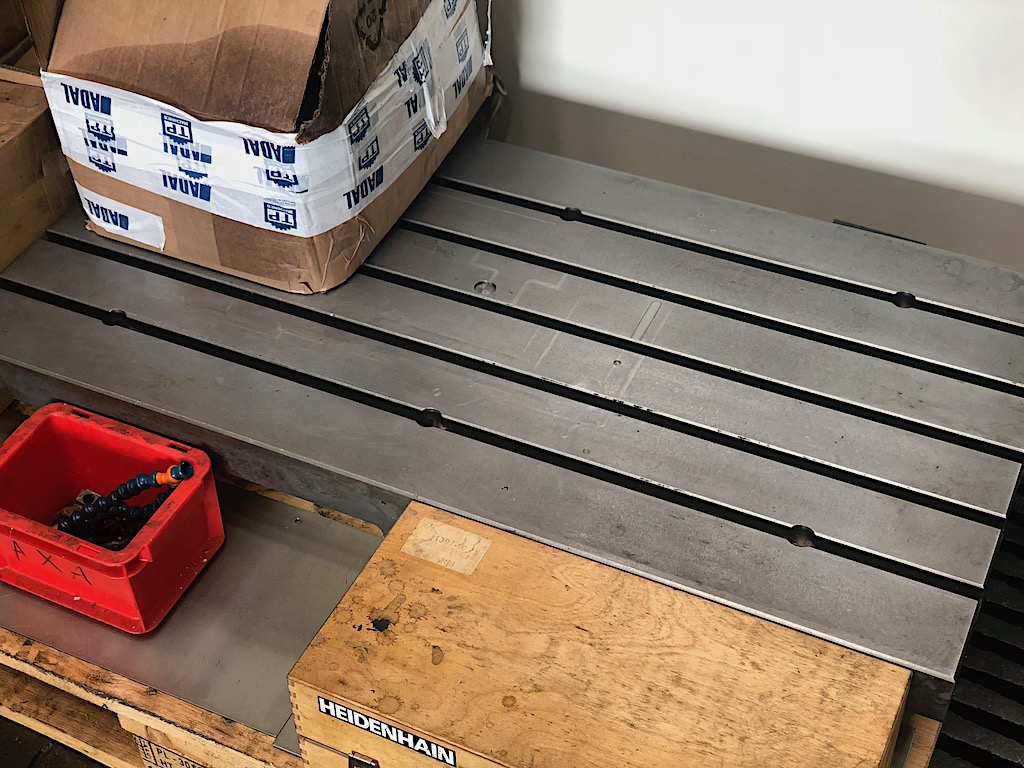

Table: 2030 x 500 mm, max. 600 kg / 1000 mm
X axis: 1760 mm (2 x 700 mm)
Y axis: 500 mm
Z axis: 600 mm

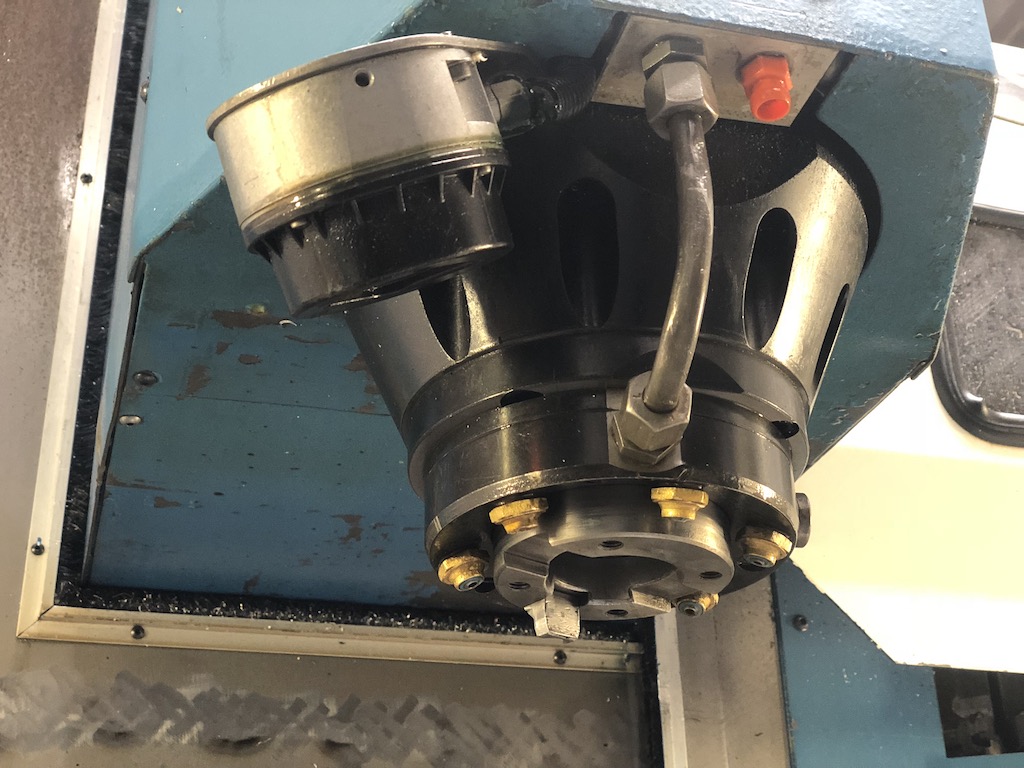

Spindle: 6,000 rpm
12 kW (40%)
114 Nm (40%)

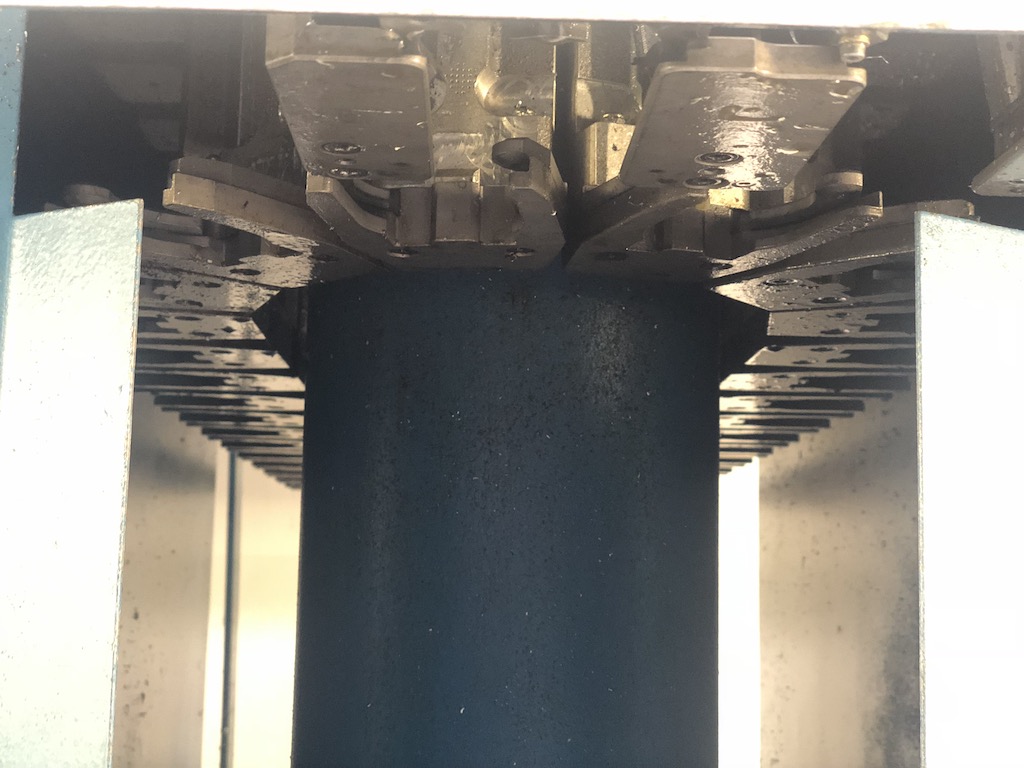

ATC: 22

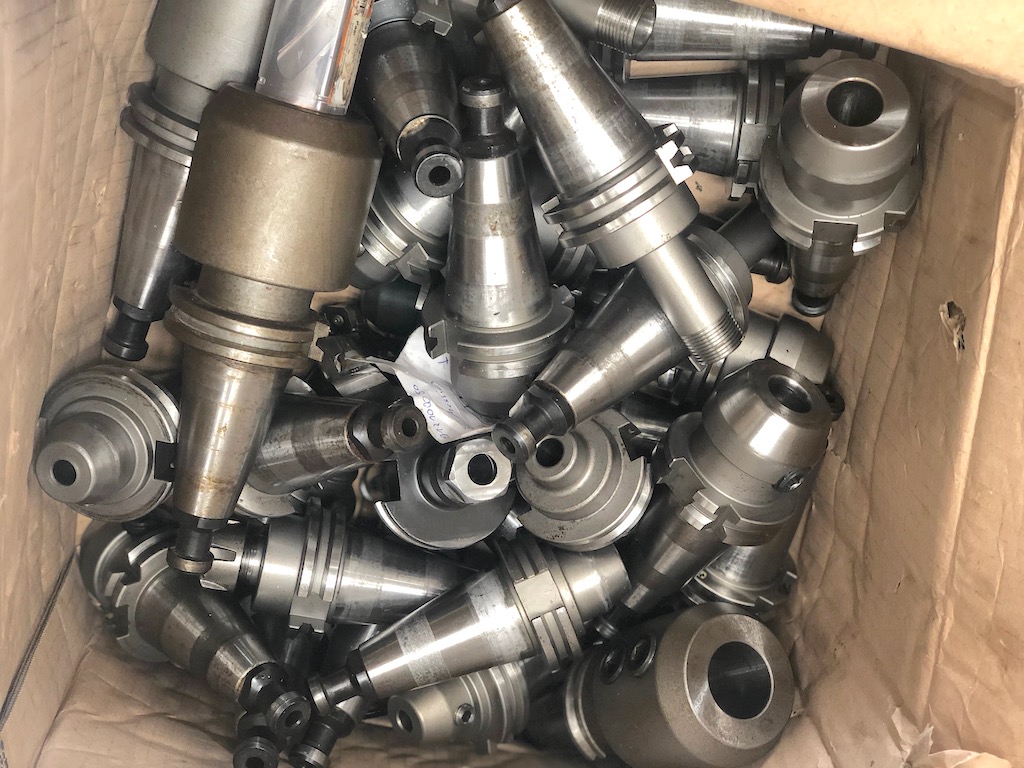

Tool taper SK40 DIN69871A/69872A
Tool:
  • Max. tool weight: 8 kg
  • Max. tool length: 400 mm
  • Max. tool width w/o empty slots: 85 mm
  • Max. tool width with empy slots: 135 mm
Accessories:

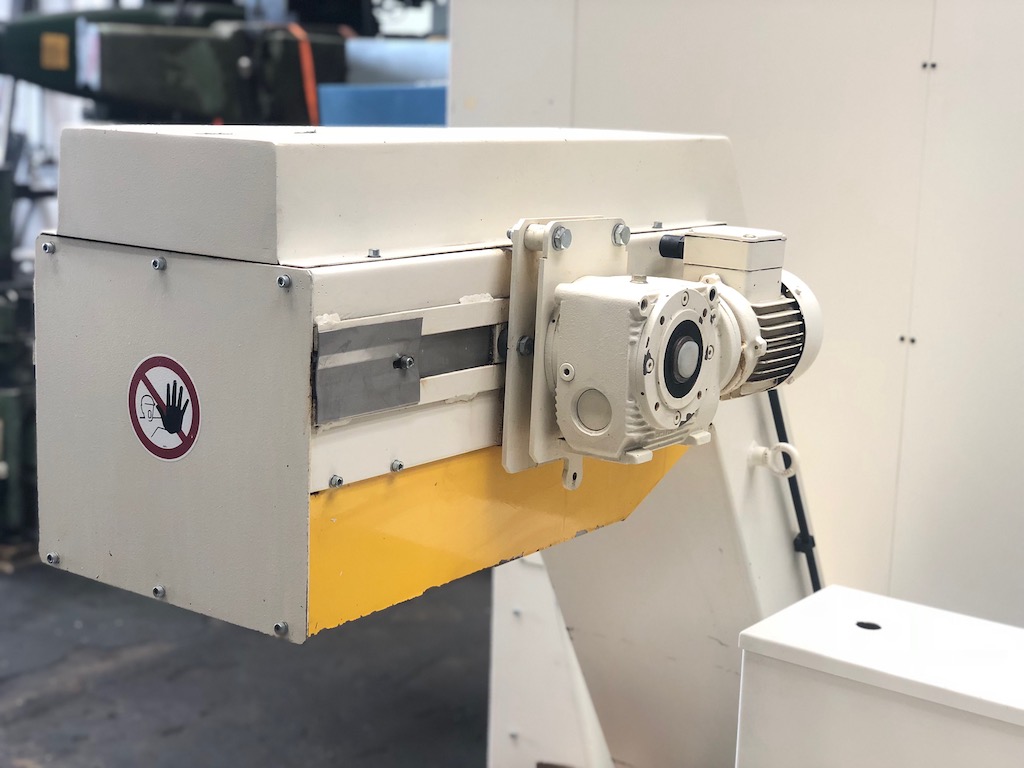

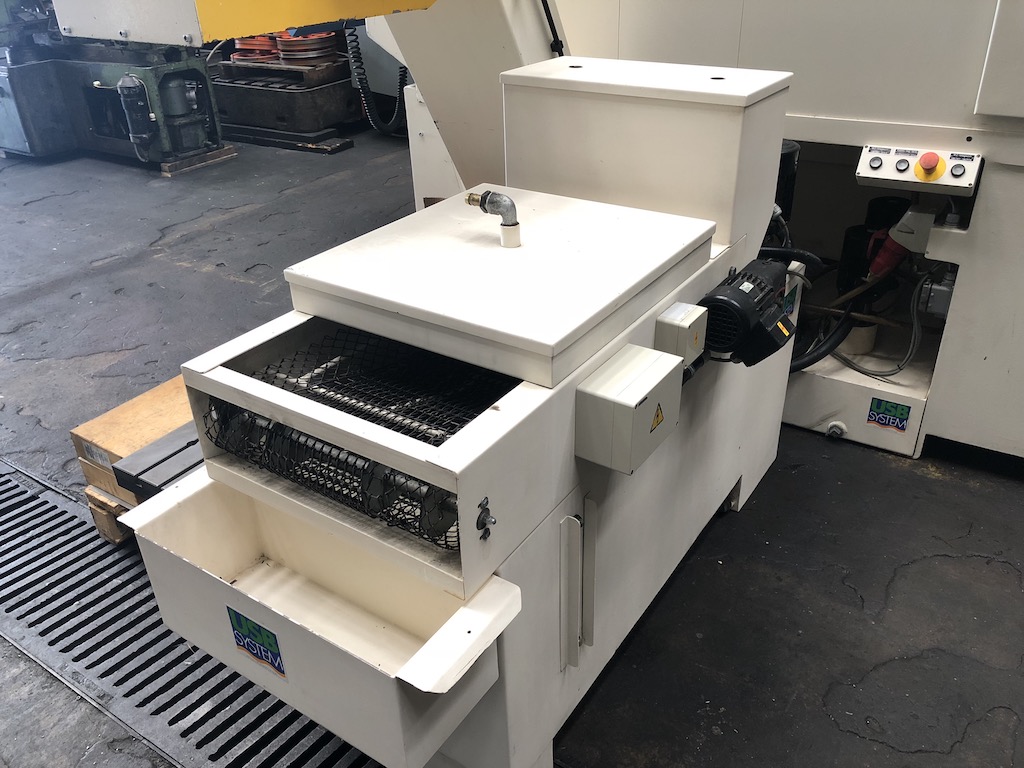

  • Chip conveyor
  • Direct measuring system Heidenhain
  • Tank with pump for cooling of workpiece

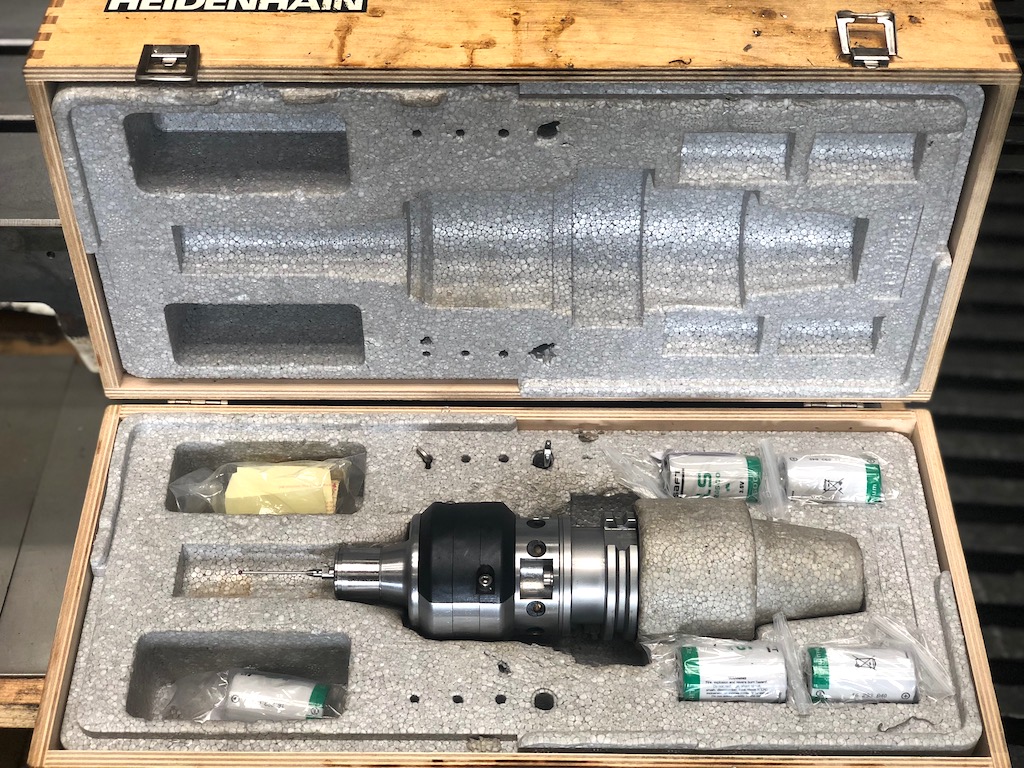

  • 3D touch probe Heidenhain TS 630

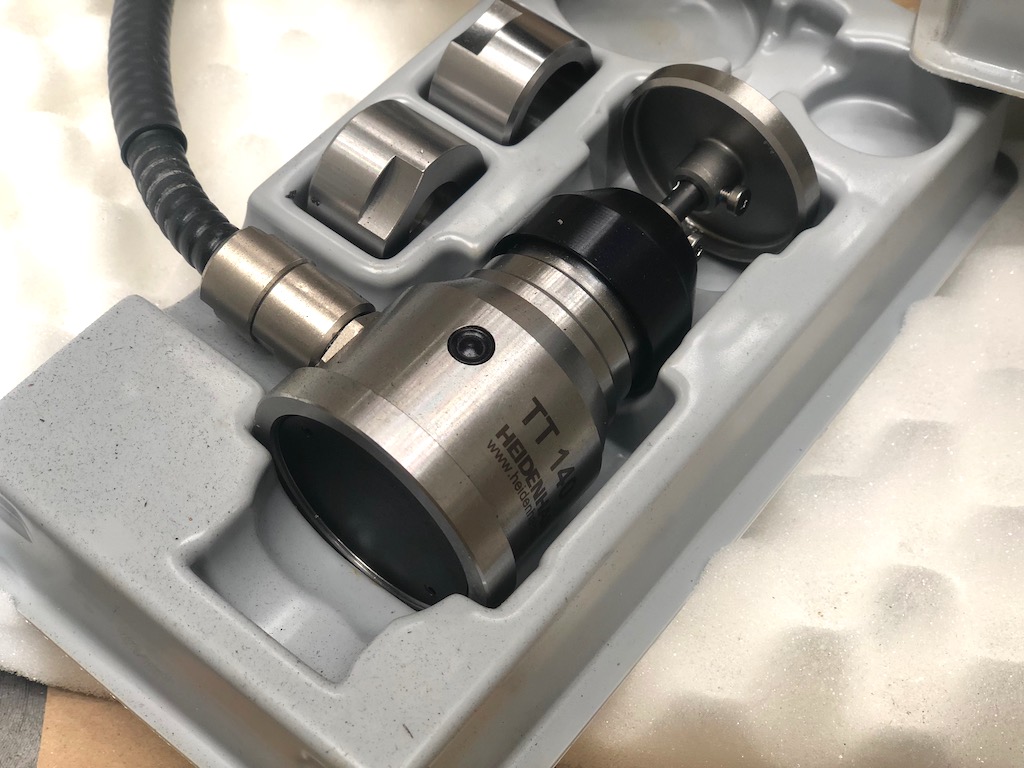

  • Heidenhain TT 140 tool touch probe
  • Complete documentation
Other technical details:
  • Distance table to spindle: 230 - 830 mm
  • Machine dimensions: 3,9 x 2,9 x 3 m
  • Machine weight: 9 t.
Offer type: In stock
Status: Sold
Price: N/A
