Technical details

Type of machine: Gear grinder

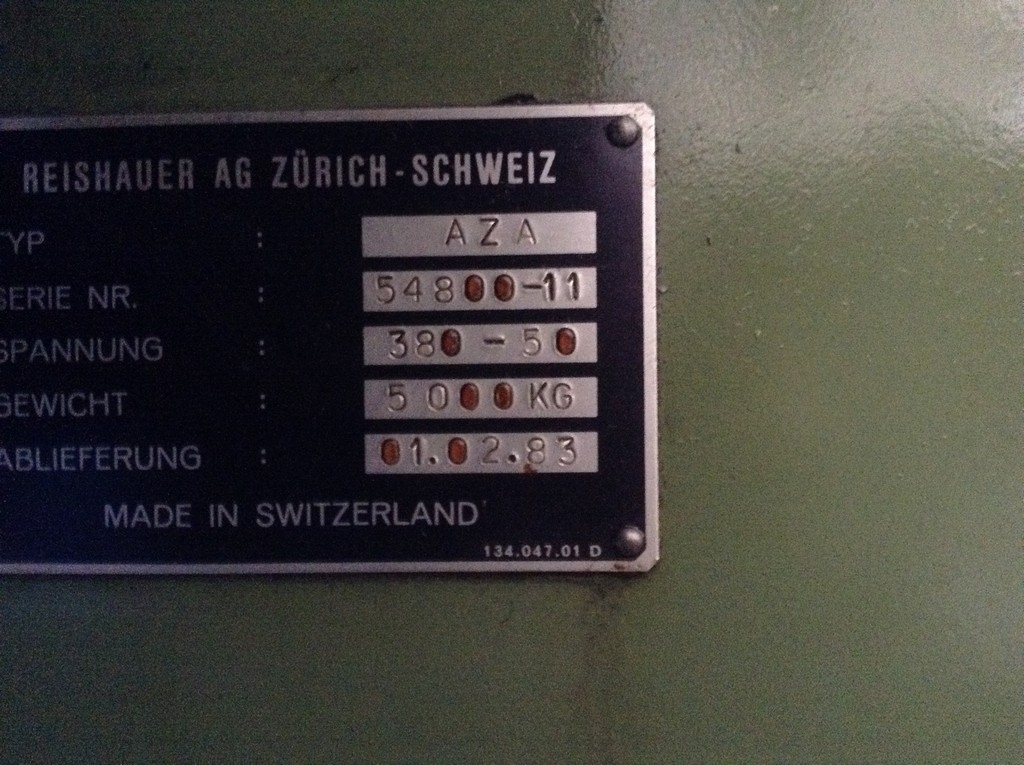

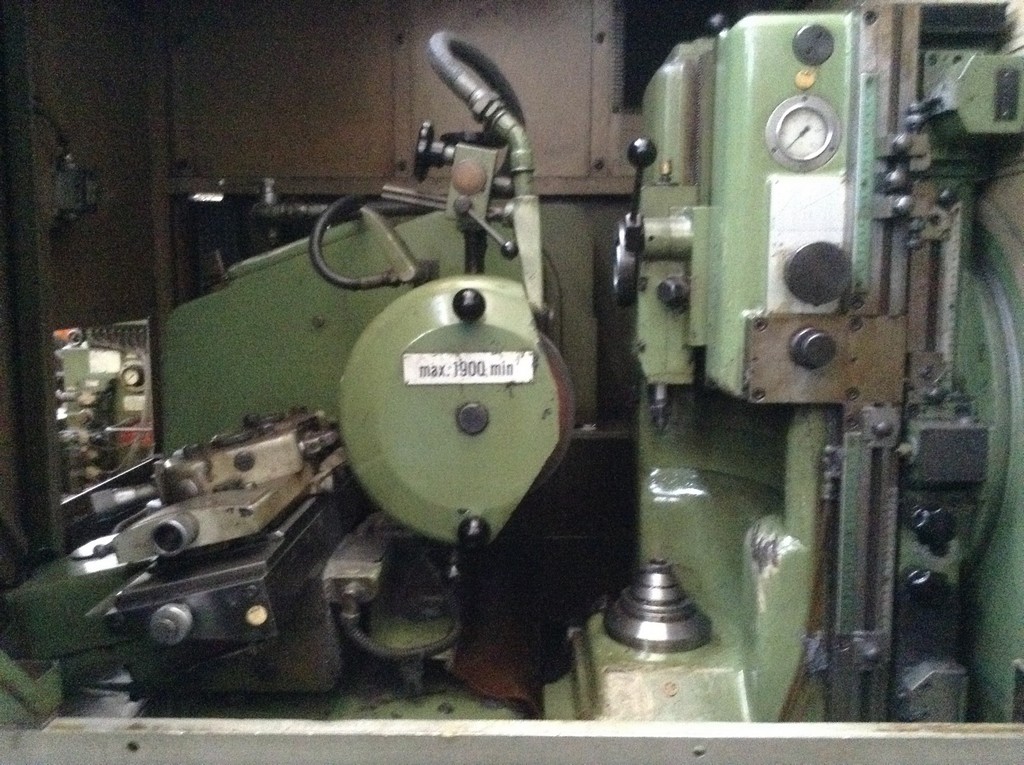

Manufacturer, Model: Reishauer Aza
YOM: 1983

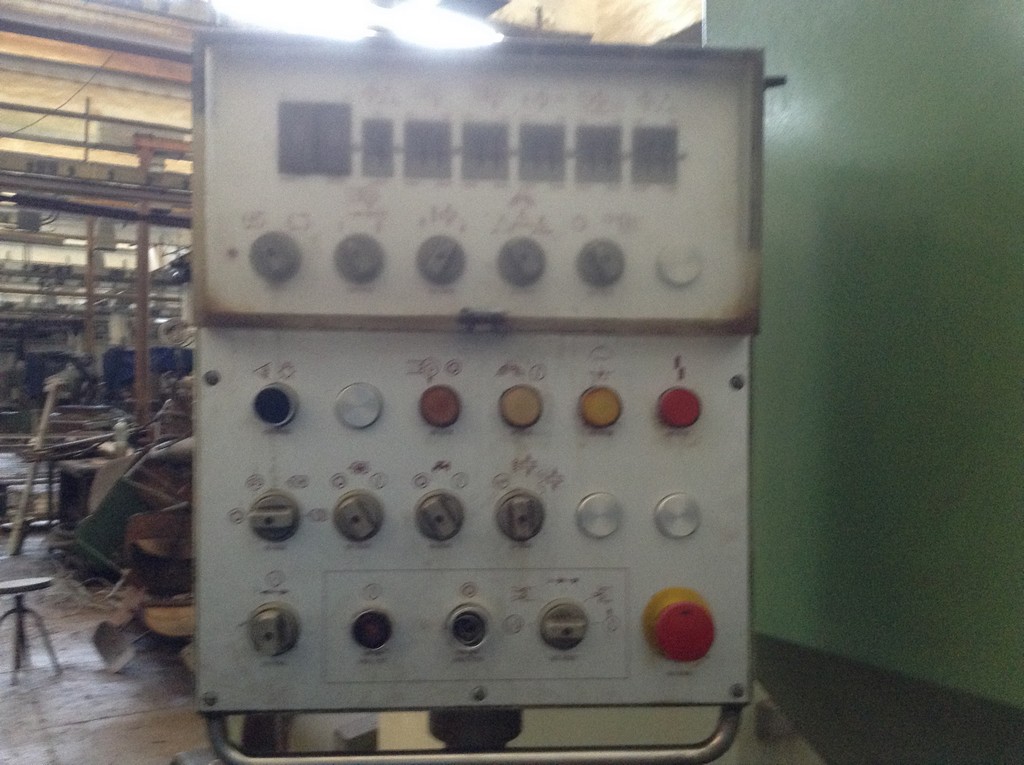

Control: Conventional
Max. gear dia: 330 mm
Max. module: 6
Other technical details:
  • wheel width 180 mm
  • module - min. 0.5
  • Zaehnezahlbereich 12-260
  • helix angle max. 45 °
  • table load 60 kg
  • feed range from 0.4 to 3.2 / WU mm

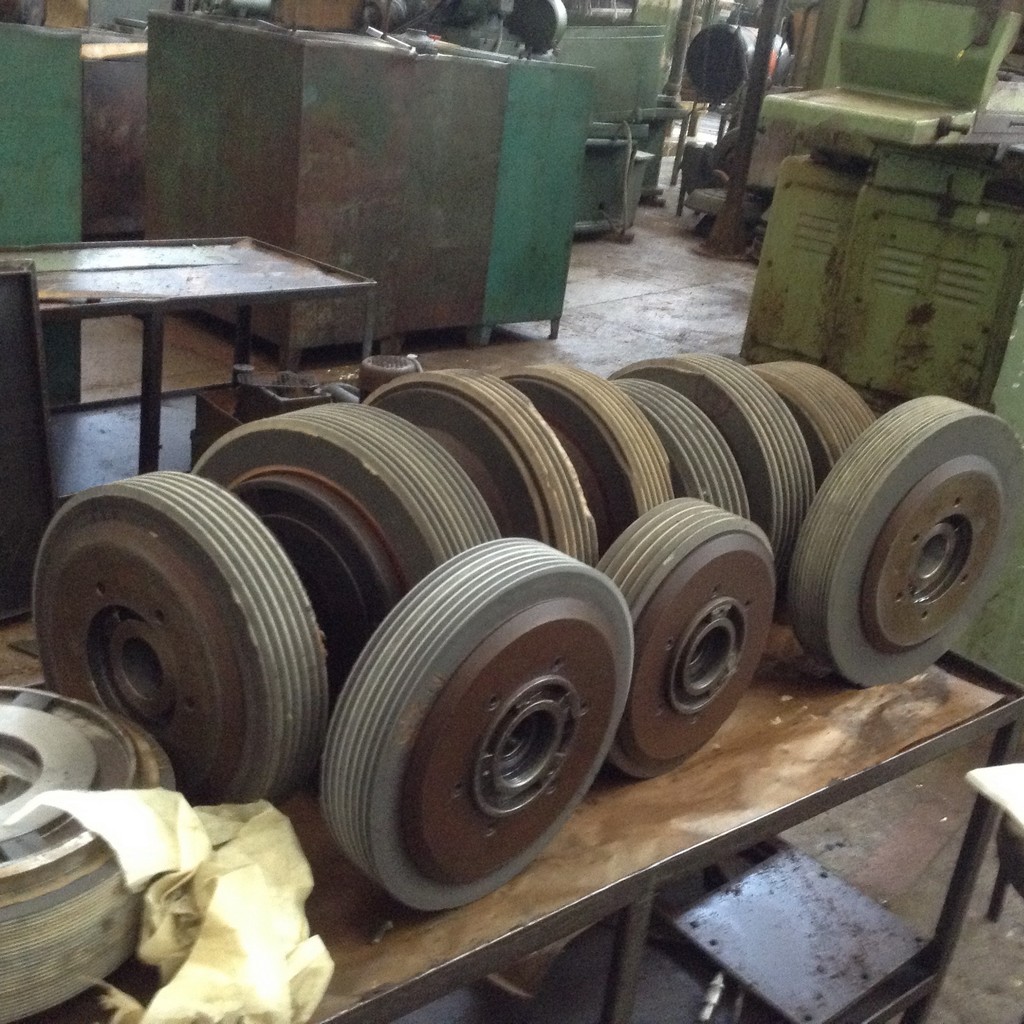

  • grinding worm - width 62/84/104 mm

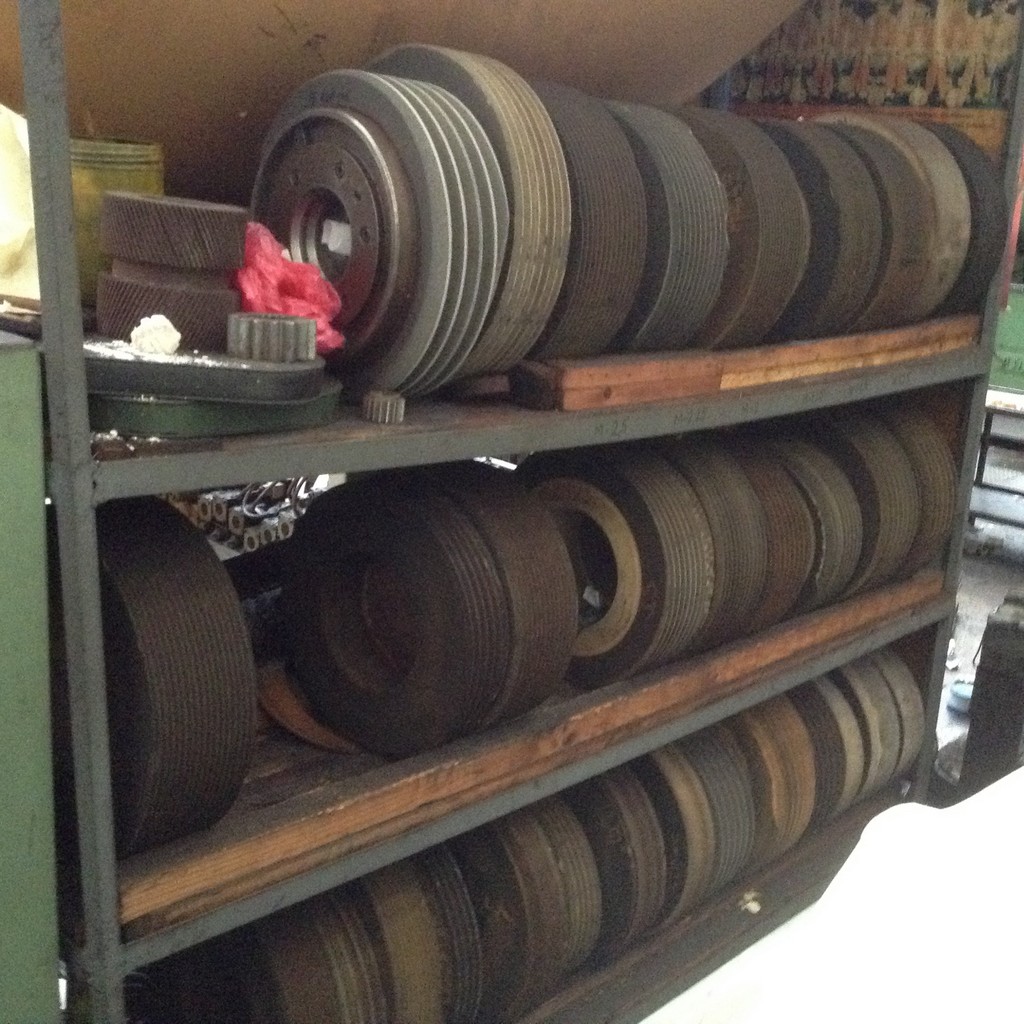

  • grinding wheels - diameter 270-350 mm

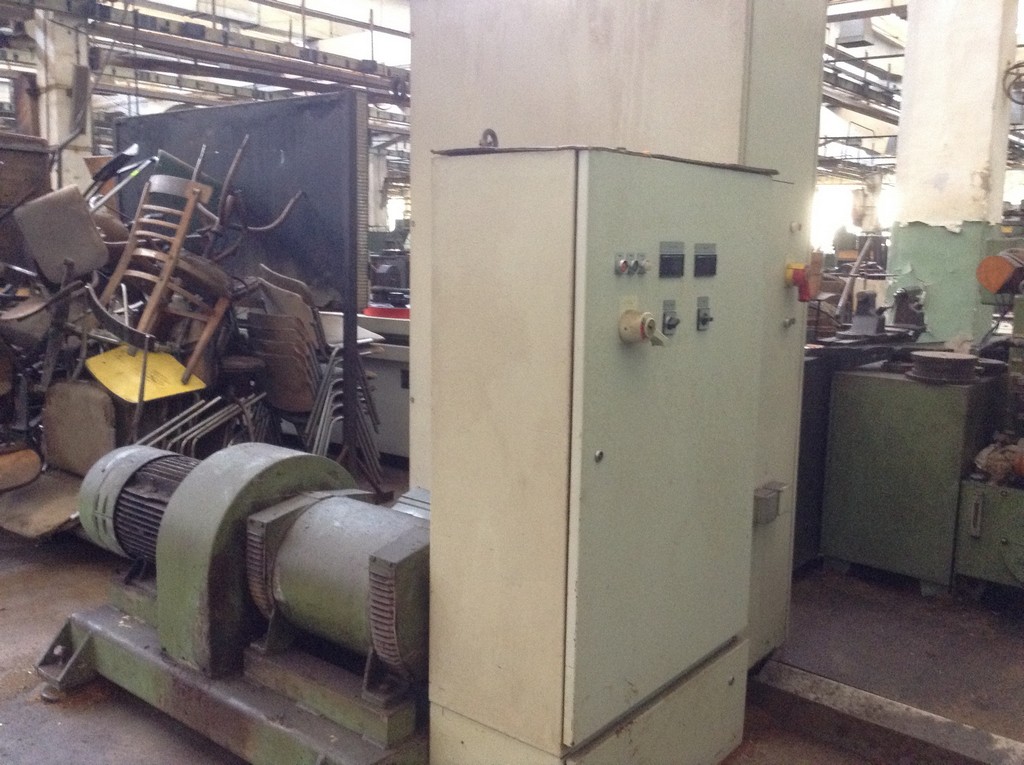

  • Electrical design - voltage / frequency 380/50 V / Hz
  • speed 1900 U / min
  • clamping length 145-420 mm
  • total power requirement 30 kW
  • weight of the machine ca. 5,5 t
  • dimensions of the machine ca. 4,2 x 5,5 x 2,2 m
  • + set of change gears

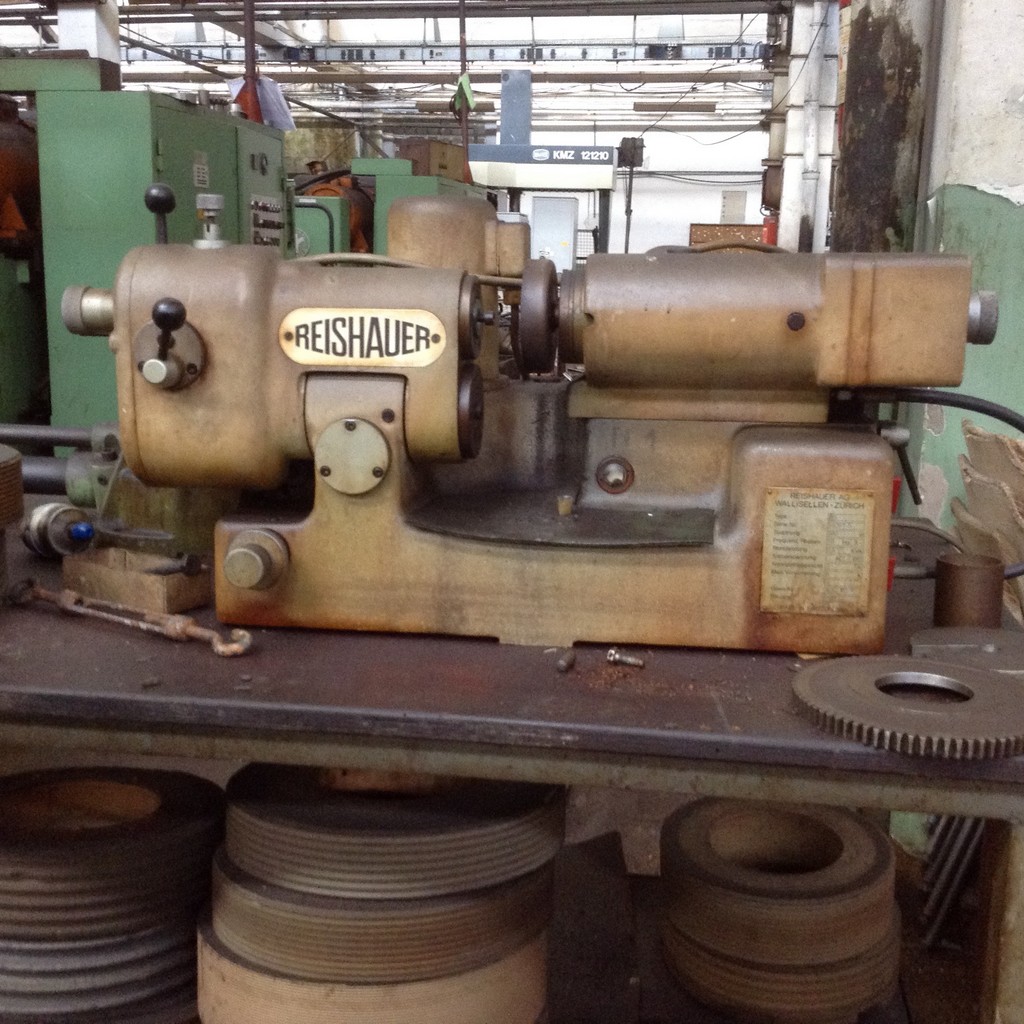

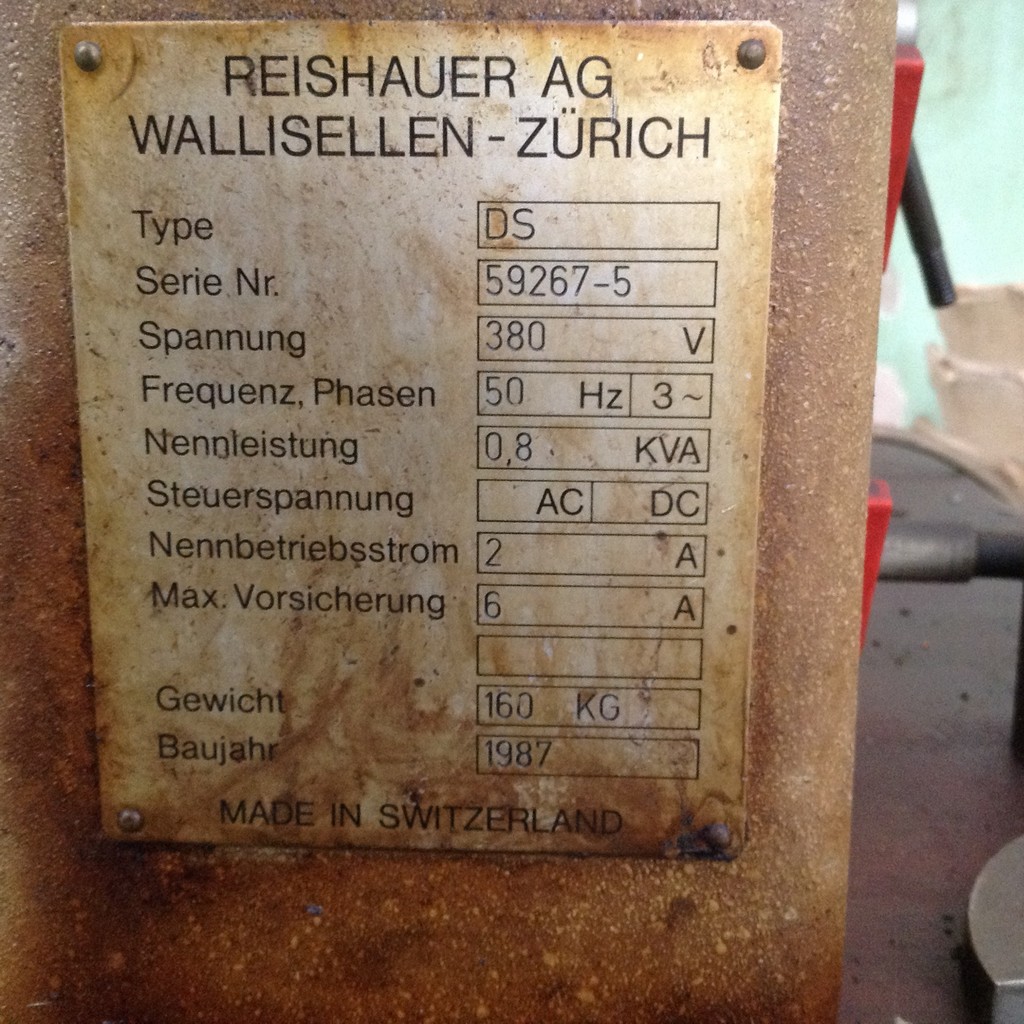

  • + Diamond lapping machine REISHAUER DS
Price: SOLD
