Technical details

Machine type: Bandsaw, fully automatic
Origin: Japan
Y.O.M: 1999

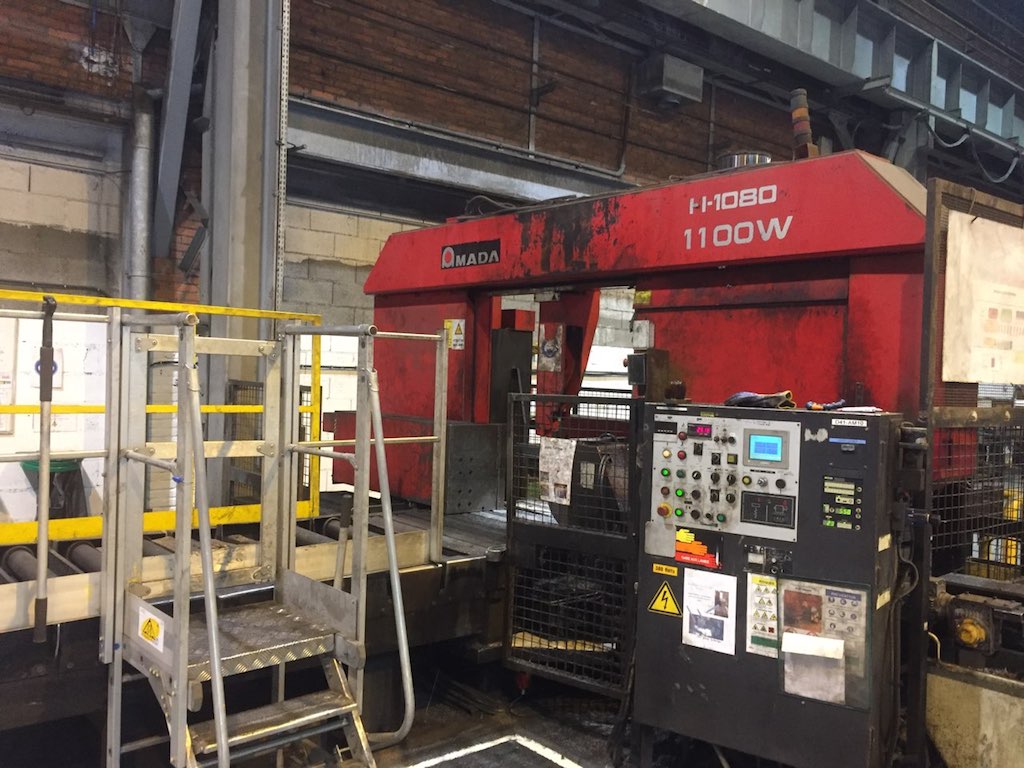

Manufacturer, model: Amada, H 1080
Cutting dia.:
  • Round capacity: Ø 1000 mm
  • Square capacity: 1100 x 1000 mm
  • Minimal capacity:Ø 400 mm
  • Minimal length of material for automatic cut: 700 mm
Blade dimensions: 80 x 1,6 x 9700 mm
Height from table: 790 mm
Max. workpiece weight: 15 t.
Feeds:
  • # of feeds: 99
  • Stroke of rear vise: 410 mm
  • Stroke of front vise: 200 mm
Other data:
  • Main motor: 11 kW
  • Hydraulic pump motor: 2,2 kW
  • Cooling pump motor: 0,25 kW
  • Hydraulic tank: 100 l
  • Cooling tank: 100 l
  • Machine weight: 12 t.
Features:
  • Hydraulic blade tensioner
  • coolant system
  • variable blade speed
Equipment:

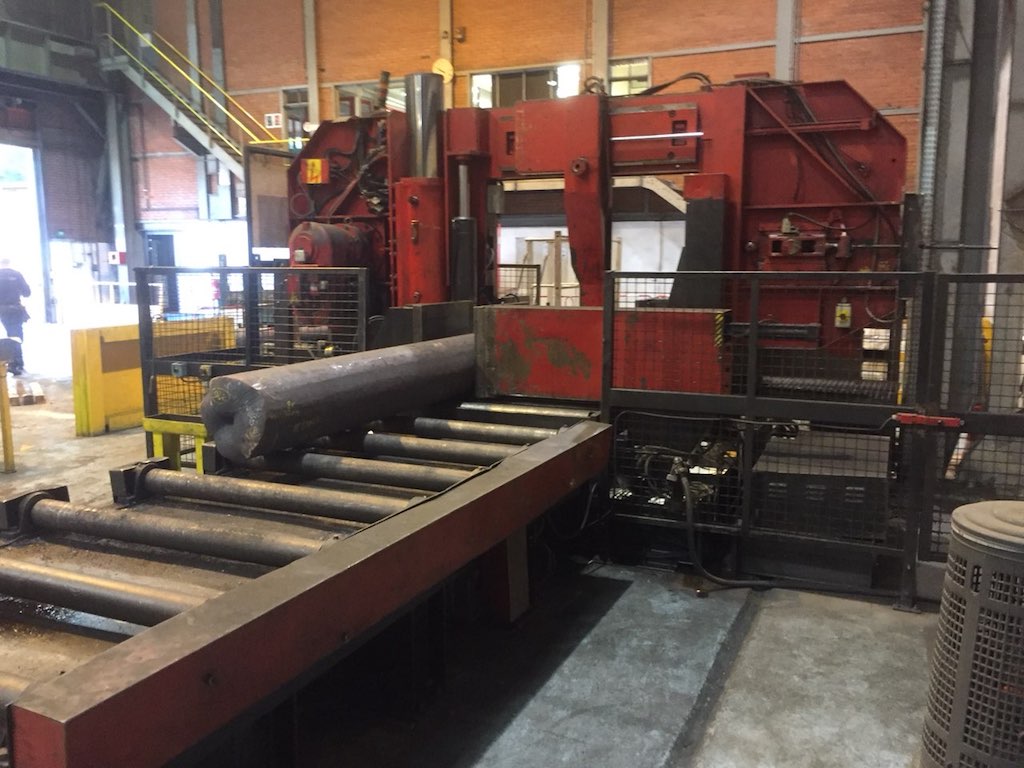

  • in-feed and out-feed roller conveyors
  • chip conveyor
  • 15 x carbid BAHCO blades 80 x 1,6 x 9700 mm TMC-1.4/2
Offer type: In stock
Status: Sold
Price: On request
